Hydraulic Actuator with Digital Position Controller

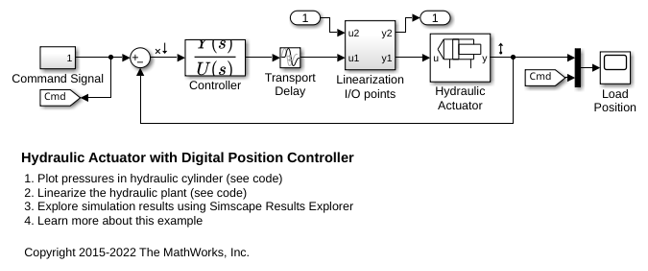

This example shows a two-way valve acting in a closed-loop circuit together with a double-acting cylinder implemented in the isothermal liquid domain. The controller is represented as a continuous-time transfer function plus a transport delay. The delay allows for the computational time (one discrete time period) plus the zero-order hold (half a discrete time period) when implemented in discrete time. The model is configured for linearization so that a frequency response can be generated. To configure for faster desktop simulation, comment through the transport delay and increase the solver maximum step size.

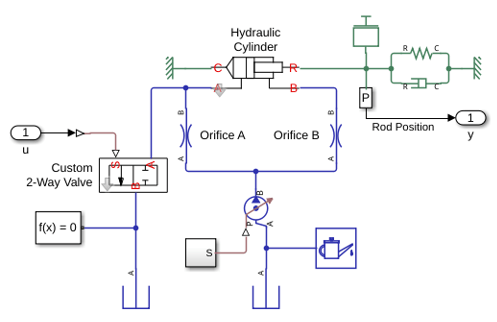

Hydraulic Actuator Subsystem

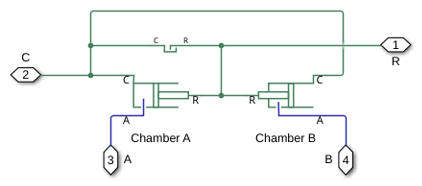

Hydraulic Cylinder Subsystem

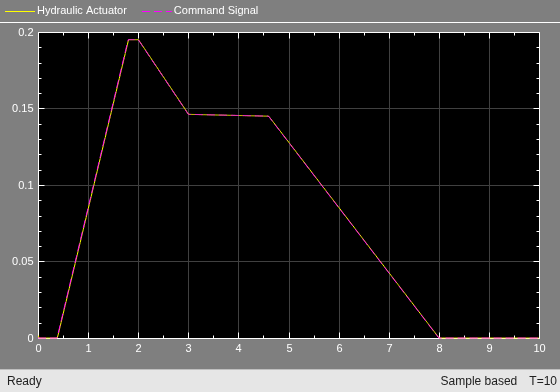

Simulation Results from Scopes

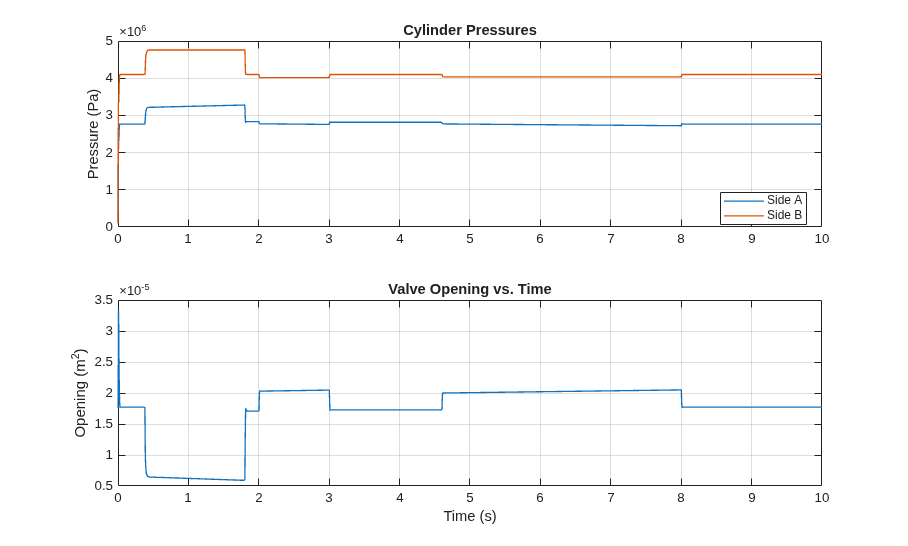

Simulation Results from Simscape Logging

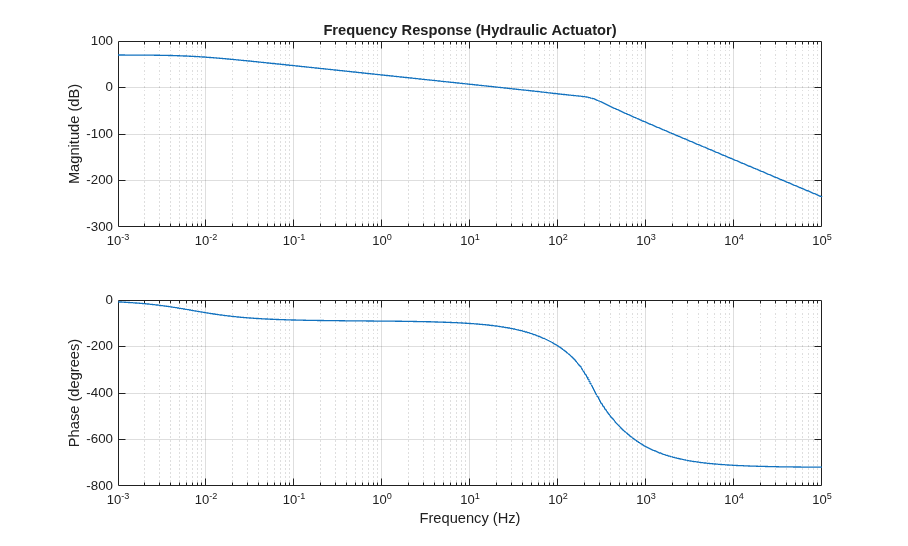

Frequency Response
