Entity Selector

Select entities

  • Entity Selector block

Libraries:
SimEvents

Description

The Entity Selector block selects entities from multiple streams of ready-to-leave entities, and matches them to a reference entity. You can use this block for modeling scenarios which involve items to be matched based on input. For instance, you can model a facility that produces parts which are matched to the corresponding order.

The block first accepts a reference entity with its Key entity attribute name. Then the block selects a matching entity with Matching entity attribute name(s) from each of the other input ports accepting incoming entities. The match is based on the equality of the specified attribute values. When a match is found across all the entity streams, the set of matching entities and the key entity become ready to depart.

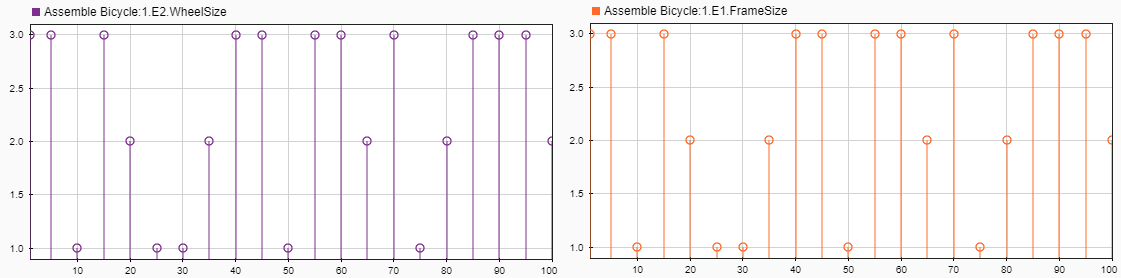

The Entity Store block can be used as a temporary container for entities to be selected by the Entity Selector block. For an example, see Match Entities Based on Attributes.

Ports

Input

expand all

Input entity port for reference entities entering the block.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus | fixed point

Input entity port for matching entities entering the block.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus | fixed point

Output

expand all

Output entity port for reference entities exiting the block.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus | fixed point

Output entity port for matching entities exiting the selector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated | bus | fixed point

Number of entities that have departed the block.

Dependencies

To enable this port, click Statistics and select the Number of entities departed, d check box.

Data Types: double

Number of entities that have not yet departed the block.

Dependencies

To enable this block, click Statistics and select the Number of entities in block, n check box.

Data Types: double

Number of entities that are pulled out of this block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities extracted, ex.

Data Types: double

Parameters

expand all

Specify the number of entity streams to be matched to the reference entity. The block can accept at most 8 matching streams.

Programmatic Use

Block Parameter: mNumberOfStreams
Type: character vector
Values: '1' | scalar
Default: '1'

Name of the reference attribute that is used to evaluate a match.

Programmatic Use

Block Parameter: mKeyEntityAttributeName
Type: character vector
Values: '{'ID'}' | character vector
Default: '{'ID'}'

Name of the matching entity attribute that is used to evaluate a match. You can specify one attribute name, or an array of attribute names that are compared with the key value to evaluate a match.

Programmatic Use

Block Parameter: mEntityAttributeName
Type: character vector
Values: '{'Type'}' | character vector
Default: '{'Type'}'

Source that determines the number of entities to be selected from each stream.

Programmatic Use

Block Parameter: mMatchingNumberSource
Type: character vector
Values: 'Dialog' | 'Attribute'
Default: 'Dialog'

Number of entities to be selected from each matching stream. You can specify 0, a positive integer, or an array of positive integers to determine the number of entities to select from each matching entity stream.

Dependencies

To enable this parameter, set the Number of entities source parameter to Dialog.

Programmatic Use

Block Parameter: mNumberOfMatches
Type: character vector
Values: '1' | scalar
Default: '1'

The name of the key attribute that determines the number of entities to be selected from each matching stream. The attribute value can be an integer or an array of integers of size equal to the number of incoming entity streams.

Dependencies

To enable this parameter, set the Number of entities source parameter to Attribute.

Programmatic Use

Block Parameter: mNumberOfMatchesAttribute
Type: character vector
Values: 'Name' | character vector
Default: 'Name'

Number of entities that have exited the block.

Programmatic Use

Block Parameter: mNumEntitiesDepOpt
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Number of entities present in the block, which have yet to depart.

Programmatic Use

Block Parameter: mNumEntitiesInBlockOpt
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Outputs the number of extracted entities which are pulled out from this block by the Entity Find block. If a key entity is extracted, the Entity Selector block waits until all the matching entities arrive at the block. Then, the matching entities depart from the corresponding output port. If a matching entity is extracted, the block looks for another matching entity. When an entity is extracted, Number of entities departed, d, and Number of entities in block, n statistics are updated accordingly.

Programmatic Use

Block Parameter: mNumEntitiesExtractedOpt
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Version History

Introduced in R2018a
