Impulse Response

The impulse response of a digital filter is the output arising from the unit impulse sequence defined as

δ(n)={1,n=0,0,n0.

You can generate an impulse sequence a number of ways; one straightforward way is

imp = [1; zeros(49,1)];

The impulse response of the simple filter with b=1 and a=[1-0.9] is h(n)=0.9n, which decays exponentially.

b = 1;
a = [1 -0.9];

h = filter(b,a,imp);

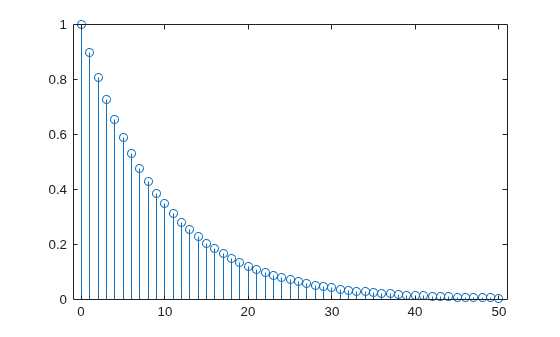

stem(0:49,h)

Figure contains an axes object. The axes object contains an object of type stem.

A simple way to display the impulse response is with the Filter Visualization Tool, fvtool.

fvtool(b,a)

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains an object of type line.

Click the Impulse Response button, [], on the toolbar, select Analysis > Impulse Response from the menu, or type the following code to obtain the exponential decay of the single-pole system.

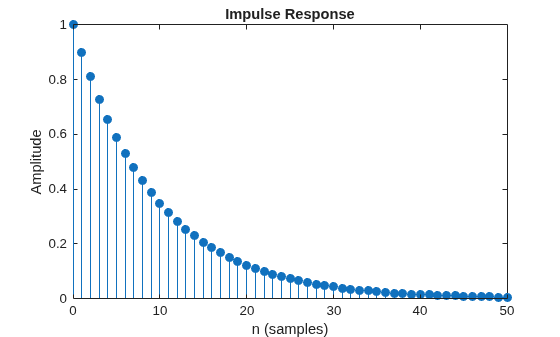

fvtool(b,a,'Analysis','impulse')

Figure Figure 2: Impulse Response contains an axes object. The axes object with title Impulse Response, xlabel Samples, ylabel Amplitude contains an object of type stem.
