Modeling Satellite Constellations using Ephemeris Data

This example demonstrates how to add time-stamped ephemeris data for a constellation of 24 satellites (similar to ESA Galileo GNSS constellation) to a satellite scenario for access analysis. The example uses data generated by the Aerospace Blockset Orbit Propagator block. For more information, see the Aerospace Blockset example Constellation Modeling with the Orbit Propagator Block.

The satelliteScenario object supports loading previously generated, time-stamped satellite ephemeris data into a scenario from a timeseries or timetable object. An ephemeris is a table containing position (and optionally velocity) state information of a satellite during a given period of time. Ephemeris data used to add satellites to the scenario object is interpolated via the makima interpolation method to align with the scenario time steps. This allows you to incorporate data generated by a Simulink model into either a new or existing satelliteScenario.

Define Mission Parameters and Constellation Initial Conditions

Specify a start date and duration for the mission. This example uses MATLAB structures to organize mission data. These structures make accessing data later in the example more intuitive. They also help declutter the global base workspace.

mission.StartDate = datetime(2020, 11, 30, 22, 23, 24);
mission.Duration  = hours(24);

The constellation in this example is a Walker-Delta constellation modeled similar to the ESA Galileo GNSS (Global navigation satellite system) constellation. The constellation consists of 24 satellites in medium Earth orbit (MEO). The satellites' Keplerian orbital elements at the mission start date epoch are:

mission.ConstellationDefinition = table( ...
    23222e3 * ones(24,1), ... % Semi-major axis (m)
    0.0005  * ones(24,1), ... % Eccentricity
    56      * ones(24,1), ... % Inclination (deg)
    350     * ones(24,1), ... % Right ascension of the ascending node (deg)
    sort(repmat([0 120 240], 1,8))', ... % Argument of periapsis (deg)
    [0:45:315, 15:45:330, 30:45:345]', ... % True anomoly (deg)
    'VariableNames', ["a (m)", "e", "i (deg)", "Ω (deg)", "ω (deg)", "ν (deg)"]);
mission.ConstellationDefinition
ans=24×6 table
      a (m)         e       i (deg)    Ω (deg)    ω (deg)    ν (deg)
    __________    ______    _______    _______    _______    _______

    2.3222e+07    0.0005      56         350          0          0
    2.3222e+07    0.0005      56         350          0         45
    2.3222e+07    0.0005      56         350          0         90
    2.3222e+07    0.0005      56         350          0        135
    2.3222e+07    0.0005      56         350          0        180
    2.3222e+07    0.0005      56         350          0        225
    2.3222e+07    0.0005      56         350          0        270
    2.3222e+07    0.0005      56         350          0        315
    2.3222e+07    0.0005      56         350        120         15
    2.3222e+07    0.0005      56         350        120         60
    2.3222e+07    0.0005      56         350        120        105
    2.3222e+07    0.0005      56         350        120        150
    2.3222e+07    0.0005      56         350        120        195
    2.3222e+07    0.0005      56         350        120        240
    2.3222e+07    0.0005      56         350        120        285
    2.3222e+07    0.0005      56         350        120        330
      ⋮

Load Ephemeris Timeseries Data

The timeseries objects contain position and velocity data for all 24 satellites in the constellation. The data is referenced in the International Terrestrial Reference frame (ITRF), which is an Earth-centered Earth-fixed (ECEF) coordinate system. The data was generated using the Aerospace Blockset Orbit Propagator block. For more information, see the Aerospace Blockset example Constellation Modeling with the Orbit Propagator Block.

mission.Ephemeris = load("SatelliteScenarioEphemerisData.mat", "TimeseriesPosITRF", "TimeseriesVelITRF");
mission.Ephemeris.TimeseriesPosITRF
  timeseries

  Common Properties:
            Name: ''
            Time: [79x1 double]
        TimeInfo: [1x1 tsdata.timemetadata]
            Data: [24x3x79 double]
        DataInfo: [1x1 tsdata.datametadata]

  More properties, Methods
mission.Ephemeris.TimeseriesVelITRF
  timeseries

  Common Properties:
            Name: ''
            Time: [79x1 double]
        TimeInfo: [1x1 tsdata.timemetadata]
            Data: [24x3x79 double]
        DataInfo: [1x1 tsdata.datametadata]

  More properties, Methods

Load the Satellite Ephemerides into a satelliteScenario Object

Create a satellite scenario object for the analysis.

scenario = satelliteScenario(mission.StartDate, mission.StartDate + hours(24), 60);

Use the satellite method to add all 24 satellites to the satellite scenario from the ECEF position and velocity timeseries objects. This example uses position and velocity information; however satellites can also be added from position data only and velocity states are then estimated. Available coordinate frames for Name-Value pair CoordinateFrame are "ECEF", "Inertial", and "Geographic". If the timeseries object contains a value for ts.TimeInfo.StartDate, the method uses that value as the epoch for the timeseries object. If no StartDate is defined, the method uses the scenario start date by default.

sat = satellite(scenario, mission.Ephemeris.TimeseriesPosITRF, mission.Ephemeris.TimeseriesVelITRF, ...
    "CoordinateFrame", "ecef", "Name", "GALILEO " + (1:24))
sat =
  1×24 Satellite array with properties:

    Name
    ID
    ConicalSensors
    Gimbals
    Transmitters
    Receivers
    Accesses
    GroundTrack
    Orbit
    OrbitPropagator
    MarkerColor
    MarkerSize
    ShowLabel
    LabelFontSize
    LabelFontColor

disp(scenario)
  satelliteScenario with properties:

         StartTime: 30-Nov-2020 22:23:24
          StopTime: 01-Dec-2020 22:23:24
        SampleTime: 60
           Viewers: [0×0 matlabshared.satellitescenario.Viewer]
        Satellites: [1×24 matlabshared.satellitescenario.Satellite]
    GroundStations: []
          AutoShow: 1

Alternatively, satellites can also be added as ephemerides to the satellite scenario as a MATLAB timetable, table, or tscollection. For example, a timetable containing the first 3 satellites of the position timeseries object in the previous section, formatted for use with satelliteScenario objects is shown below.

  • Satellites are represented by variables (column headers).

  • Each row contains a position vector associated with the row's Time property.

timetable(...
datetime(getabstime(mission.Ephemeris.TimeseriesPosITRF)), ...
squeeze(mission.Ephemeris.TimeseriesPosITRF.Data(1,:,:))', ...
squeeze(mission.Ephemeris.TimeseriesPosITRF.Data(2,:,:))', ...
squeeze(mission.Ephemeris.TimeseriesPosITRF.Data(3,:,:))',...
'VariableNames', ["Satellite_1", "Satellite_2", "Satellite_3"])
ans=79×3 timetable
            Time                          Satellite_1                                 Satellite_2                                  Satellite_3
    ____________________    ________________________________________    ________________________________________    _________________________________________

    30-Nov-2020 22:23:24    1.4317e+07    -1.7969e+07    -3.2957e+06    1.8576e+07    -8.4335e+06     1.1077e+07     1.1955e+07     6.0469e+06     1.8967e+07
    30-Nov-2020 22:23:34    1.4326e+07    -1.7968e+07    -3.2607e+06    1.8567e+07    -8.4162e+06     1.1106e+07     1.1934e+07      6.071e+06     1.8974e+07
    30-Nov-2020 22:24:26    1.4367e+07    -1.7966e+07    -3.0856e+06    1.8519e+07    -8.3288e+06      1.125e+07     1.1824e+07      6.192e+06     1.9003e+07
    30-Nov-2020 22:28:44    1.4562e+07    -1.7939e+07    -2.2062e+06    1.8271e+07     -7.878e+06     1.1958e+07      1.128e+07     6.8025e+06     1.9125e+07
    30-Nov-2020 22:40:57    1.4983e+07    -1.7724e+07     3.0748e+05    1.7492e+07     -6.472e+06     1.3824e+07      9.757e+06     8.5761e+06     1.9251e+07
    30-Nov-2020 22:54:44    1.5245e+07    -1.7219e+07     3.1374e+06    1.6506e+07    -4.6682e+06     1.5645e+07     8.1023e+06     1.0623e+07     1.8999e+07
    30-Nov-2020 23:08:36    1.5308e+07    -1.6416e+07     5.9118e+06    1.5446e+07    -2.6463e+06     1.7132e+07      6.541e+06     1.2681e+07     1.8329e+07
    30-Nov-2020 23:24:15    1.5183e+07    -1.5144e+07     8.8865e+06    1.4218e+07    -1.4887e+05     1.8358e+07     4.9309e+06     1.4942e+07     1.7089e+07
    30-Nov-2020 23:40:33    1.4888e+07    -1.3412e+07     1.1718e+07    1.2964e+07     2.6318e+06     1.9086e+07     3.4517e+06     1.7146e+07      1.529e+07
    30-Nov-2020 23:57:25    1.4477e+07    -1.1213e+07     1.4269e+07    1.1748e+07     5.6176e+06      1.923e+07     2.1441e+06     1.9174e+07     1.2944e+07
    01-Dec-2020 00:15:24    1.3994e+07    -8.4611e+06     1.6479e+07    1.0588e+07     8.8233e+06     1.8695e+07      9.861e+05      2.096e+07     9.9781e+06
    01-Dec-2020 00:33:57    1.3527e+07    -5.2723e+06     1.8119e+07    9.5707e+06     1.2021e+07      1.742e+07          14938     2.2298e+07     6.5344e+06
    01-Dec-2020 00:53:11    1.3142e+07    -1.7143e+06     1.9066e+07    8.7131e+06     1.5075e+07     1.5378e+07    -8.1352e+05     2.3065e+07     2.6968e+06
    01-Dec-2020 01:12:46    1.2901e+07     2.0218e+06     1.9203e+07    8.0192e+06     1.7771e+07     1.2634e+07    -1.5539e+06     2.3146e+07    -1.3246e+06
    01-Dec-2020 01:32:20    1.2826e+07     5.7119e+06     1.8499e+07     7.449e+06     1.9927e+07     9.3368e+06    -2.2854e+06      2.251e+07    -5.2889e+06
    01-Dec-2020 01:51:55    1.2899e+07     9.1955e+06     1.6986e+07    6.9227e+06     2.1452e+07     5.6297e+06    -3.1024e+06     2.1184e+07    -9.0243e+06
      ⋮

Set Graphical Properties on the Satellites

Viewer windows with many satellites can become crowded and difficult to read. To keep the window readable, manually control graphical properties of the scenario elements.

Hide the satellite labels and ground tracks.

set(sat, "ShowLabel", false);
hide([sat(:).GroundTrack]);

Set satellite in the same orbital plane to have the same orbit color.

set(sat(1:8), "MarkerColor", "red");
set(sat(9:16), "MarkerColor", "blue");
set(sat(17:24), "MarkerColor", "green");
orbit = [sat(:).Orbit];
set(orbit(1:8), "LineColor", "red");
set(orbit(9:16), "LineColor", "blue");
set(orbit(17:24), "LineColor", "green");

Add Ground Stations to Scenario

To provide accurate positioning data, a location on Earth must have access to at least 4 satellites in the constellation at any given time. In this example, use three MathWorks locations to compare total constellation access over the 1 day analysis window to different regions of Earth:

  • MathWorks headquarters in Natick, Massachusetts, USA (42.30048°, -71.34908°)

  • MathWorks München in Ismaning (near München), Germany (48.23206°, 11.68445°)

  • MathWorks Bangalore in Bangalore, India (12.94448°, 77.69256°)

gsUS = groundStation(scenario, 42.30048, -71.34908, ...
    "MinElevationAngle", 10, "Name", "MW Natick");
gsDE = groundStation(scenario, 48.23206, 11.68445, ...
    "MinElevationAngle", 10, "Name", "MW Munchen");
gsIN = groundStation(scenario, 12.94448, 77.69256, ...
    "MinElevationAngle", 10, "Name", "MW Bangalore");

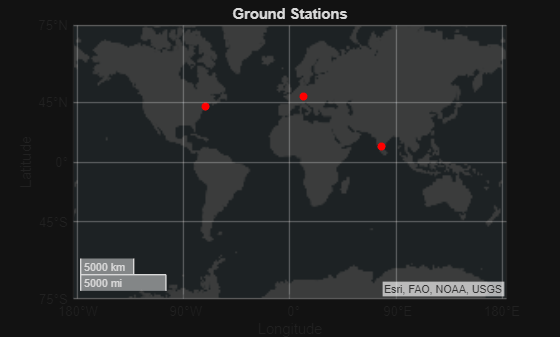

figure
geoscatter([gsUS.Latitude gsDE.Latitude gsIN.Latitude], ...
    [gsUS.Longitude gsDE.Longitude gsIN.Longitude], "red", "filled")
geolimits([-75 75], [-180 180])
title("MathWorks Ground Stations")

Compute Ground Station to Satellite Access (Line-of-Sight Visibility)

Calculate line-of-sight access between the ground stations and each individual satellite using the access method.

for idx = 1:numel(sat)
    access(gsUS, sat(idx));
    access(gsDE, sat(idx));
    access(gsIN, sat(idx));
end
accessUS = [gsUS(:).Accesses];
accessDE = [gsDE(:).Accesses];
accessIN = [gsIN(:).Accesses];

Set access colors to match orbital plane colors assigned earlier in the example.

set(accessUS(1:8), "LineColor", "red");
set(accessUS(9:16), "LineColor", "blue");
set(accessUS(17:24), "LineColor", "green");

set(accessDE(1:8), "LineColor", "red");
set(accessDE(9:16), "LineColor", "blue");
set(accessDE(17:24), "LineColor", "green");

set(accessIN(1:8), "LineColor", "red");
set(accessIN(9:16), "LineColor", "blue");
set(accessIN(17:24), "LineColor", "green");

View the full access table between each ground station and all satellites in the constellation as tables. Sort the access intervals by interval start time. Satellites added from ephemeris data do not display values for StartOrbit and EndOrbit.

intervalsUS = accessIntervals(accessUS);
intervalsUS = sortrows(intervalsUS, "StartTime", "ascend")
intervalsUS=52×8 table
      Source          Target       IntervalNumber         StartTime                EndTime           Duration    StartOrbit    EndOrbit
    ___________    ____________    ______________    ____________________    ____________________    ________    __________    ________

    "MW Natick"    "GALILEO 1"           1           30-Nov-2020 22:23:24    01-Dec-2020 01:40:24     11820         NaN          NaN
    "MW Natick"    "GALILEO 2"           1           30-Nov-2020 22:23:24    01-Dec-2020 00:08:24      6300         NaN          NaN
    "MW Natick"    "GALILEO 3"           1           30-Nov-2020 22:23:24    30-Nov-2020 22:34:24       660         NaN          NaN
    "MW Natick"    "GALILEO 12"          1           30-Nov-2020 22:23:24    30-Nov-2020 23:35:24      4320         NaN          NaN
    "MW Natick"    "GALILEO 13"          1           30-Nov-2020 22:23:24    30-Nov-2020 22:47:24      1440         NaN          NaN
    "MW Natick"    "GALILEO 18"          1           30-Nov-2020 22:23:24    01-Dec-2020 01:51:24     12480         NaN          NaN
    "MW Natick"    "GALILEO 19"          1           30-Nov-2020 22:23:24    01-Dec-2020 00:13:24      6600         NaN          NaN
    "MW Natick"    "GALILEO 20"          1           30-Nov-2020 22:23:24    30-Nov-2020 22:27:24       240         NaN          NaN
    "MW Natick"    "GALILEO 11"          1           30-Nov-2020 22:38:24    01-Dec-2020 00:00:24      4920         NaN          NaN
    "MW Natick"    "GALILEO 17"          1           30-Nov-2020 22:47:24    01-Dec-2020 03:19:24     16320         NaN          NaN
    "MW Natick"    "GALILEO 8"           1           30-Nov-2020 23:09:24    01-Dec-2020 03:15:24     14760         NaN          NaN
    "MW Natick"    "GALILEO 7"           1           01-Dec-2020 00:28:24    01-Dec-2020 04:55:24     16020         NaN          NaN
    "MW Natick"    "GALILEO 24"          1           01-Dec-2020 00:29:24    01-Dec-2020 04:40:24     15060         NaN          NaN
    "MW Natick"    "GALILEO 6"           1           01-Dec-2020 01:54:24    01-Dec-2020 06:41:24     17220         NaN          NaN
    "MW Natick"    "GALILEO 23"          1           01-Dec-2020 02:04:24    01-Dec-2020 05:52:24     13680         NaN          NaN
    "MW Natick"    "GALILEO 5"           1           01-Dec-2020 03:30:24    01-Dec-2020 08:25:24     17700         NaN          NaN
      ⋮

intervalsDE = accessIntervals(accessDE);
intervalsDE = sortrows(intervalsDE, "StartTime", "ascend")
intervalsDE=51×8 table
       Source          Target       IntervalNumber         StartTime                EndTime           Duration    StartOrbit    EndOrbit
    ____________    ____________    ______________    ____________________    ____________________    ________    __________    ________

    "MW Munchen"    "GALILEO 2"           1           30-Nov-2020 22:23:24    01-Dec-2020 02:01:24     13080         NaN          NaN
    "MW Munchen"    "GALILEO 3"           1           30-Nov-2020 22:23:24    01-Dec-2020 00:20:24      7020         NaN          NaN
    "MW Munchen"    "GALILEO 4"           1           30-Nov-2020 22:23:24    30-Nov-2020 22:40:24      1020         NaN          NaN
    "MW Munchen"    "GALILEO 19"          1           30-Nov-2020 22:23:24    01-Dec-2020 00:42:24      8340         NaN          NaN
    "MW Munchen"    "GALILEO 20"          1           30-Nov-2020 22:23:24    30-Nov-2020 23:35:24      4320         NaN          NaN
    "MW Munchen"    "GALILEO 10"          1           30-Nov-2020 22:38:24    30-Nov-2020 22:49:24       660         NaN          NaN
    "MW Munchen"    "GALILEO 18"          1           30-Nov-2020 22:42:24    01-Dec-2020 01:37:24     10500         NaN          NaN
    "MW Munchen"    "GALILEO 9"           1           30-Nov-2020 22:44:24    01-Dec-2020 00:43:24      7140         NaN          NaN
    "MW Munchen"    "GALILEO 1"           1           30-Nov-2020 22:55:24    01-Dec-2020 03:37:24     16920         NaN          NaN
    "MW Munchen"    "GALILEO 16"          1           30-Nov-2020 23:24:24    01-Dec-2020 02:15:24     10260         NaN          NaN
    "MW Munchen"    "GALILEO 17"          1           01-Dec-2020 00:13:24    01-Dec-2020 02:19:24      7560         NaN          NaN
    "MW Munchen"    "GALILEO 15"          1           01-Dec-2020 00:18:24    01-Dec-2020 03:45:24     12420         NaN          NaN
    "MW Munchen"    "GALILEO 8"           1           01-Dec-2020 00:36:24    01-Dec-2020 05:07:24     16260         NaN          NaN
    "MW Munchen"    "GALILEO 14"          1           01-Dec-2020 01:24:24    01-Dec-2020 05:17:24     13980         NaN          NaN
    "MW Munchen"    "GALILEO 24"          1           01-Dec-2020 01:57:24    01-Dec-2020 02:36:24      2340         NaN          NaN
    "MW Munchen"    "GALILEO 7"           1           01-Dec-2020 02:16:24    01-Dec-2020 06:29:24     15180         NaN          NaN
      ⋮

intervalsIN = accessIntervals(accessIN);
intervalsIN = sortrows(intervalsIN, "StartTime", "ascend")
intervalsIN=45×8 table
        Source           Target       IntervalNumber         StartTime                EndTime           Duration    StartOrbit    EndOrbit
    ______________    ____________    ______________    ____________________    ____________________    ________    __________    ________

    "MW Bangalore"    "GALILEO 3"           1           30-Nov-2020 22:23:24    01-Dec-2020 02:38:24     15300         NaN          NaN
    "MW Bangalore"    "GALILEO 4"           1           30-Nov-2020 22:23:24    01-Dec-2020 01:05:24      9720         NaN          NaN
    "MW Bangalore"    "GALILEO 5"           1           30-Nov-2020 22:23:24    30-Nov-2020 23:17:24      3240         NaN          NaN
    "MW Bangalore"    "GALILEO 9"           1           30-Nov-2020 22:23:24    01-Dec-2020 00:55:24      9120         NaN          NaN
    "MW Bangalore"    "GALILEO 10"          1           30-Nov-2020 22:23:24    30-Nov-2020 23:19:24      3360         NaN          NaN
    "MW Bangalore"    "GALILEO 16"          1           30-Nov-2020 22:23:24    01-Dec-2020 02:42:24     15540         NaN          NaN
    "MW Bangalore"    "GALILEO 21"          1           30-Nov-2020 22:23:24    30-Nov-2020 23:02:24      2340         NaN          NaN
    "MW Bangalore"    "GALILEO 22"          1           30-Nov-2020 22:23:24    30-Nov-2020 22:29:24       360         NaN          NaN
    "MW Bangalore"    "GALILEO 15"          1           30-Nov-2020 23:36:24    01-Dec-2020 05:12:24     20160         NaN          NaN
    "MW Bangalore"    "GALILEO 2"           1           30-Nov-2020 23:44:24    01-Dec-2020 04:05:24     15660         NaN          NaN
    "MW Bangalore"    "GALILEO 21"          2           01-Dec-2020 01:15:24    01-Dec-2020 04:12:24     10620         NaN          NaN
    "MW Bangalore"    "GALILEO 1"           1           01-Dec-2020 01:20:24    01-Dec-2020 05:26:24     14760         NaN          NaN
    "MW Bangalore"    "GALILEO 14"          1           01-Dec-2020 01:29:24    01-Dec-2020 07:33:24     21840         NaN          NaN
    "MW Bangalore"    "GALILEO 20"          1           01-Dec-2020 02:04:24    01-Dec-2020 05:56:24     13920         NaN          NaN
    "MW Bangalore"    "GALILEO 8"           1           01-Dec-2020 02:56:24    01-Dec-2020 06:37:24     13260         NaN          NaN
    "MW Bangalore"    "GALILEO 19"          1           01-Dec-2020 03:20:24    01-Dec-2020 07:32:24     15120         NaN          NaN
      ⋮

View the Satellite Scenario

Open a 3-D viewer window of the scenario. The viewer window contains all 24 satellites and the three ground stations defined earlier in this example. A line is drawn between each ground station and satellite during their corresponding access intervals.

viewer3D = satelliteScenarioViewer(scenario);

Compare Access Between Ground Stations

Calculate access status between each satellite and ground station using the accessStatus method. Plot cumulative access for each ground station over the one day analysis window.

% Initialize array with size equal to number of timesteps in scenario
timeSteps = mission.StartDate:seconds(60):mission.StartDate+days(1);
statusUS = zeros(1, numel(timeSteps));
statusDE = statusUS;
statusIN = statusUS;

% Sum cumulative access at each timestep
for idx = 1:24
    statusUS = statusUS + accessStatus(accessUS(idx));
    statusDE = statusDE + accessStatus(accessDE(idx));
    statusIN = statusIN + accessStatus(accessIN(idx));
end
clear idx;

subplot(3,1,1);
plot(timeSteps, statusUS);
title("MW Natick to GALILEO")
ylabel("# of satellites")
subplot(3,1,2);
plot(timeSteps, statusDE);
title("MW München to GALILEO")
ylabel("# of satellites")
subplot(3,1,3);
plot(timeSteps, statusIN);
title("MW Bangalore to GALILEO")
ylabel("# of satellites")

Collect access interval metrics for each ground station in a table for comparison.

statusTable = [table(height(intervalsUS), height(intervalsDE), height(intervalsIN)); ...
    table(sum(intervalsUS.Duration)/3600, sum(intervalsDE.Duration)/3600, sum(intervalsIN.Duration)/3600); ...
    table(mean(intervalsUS.Duration/60), mean(intervalsDE.Duration/60), mean(intervalsIN.Duration/60)); ...
    table(mean(statusUS, 2), mean(statusDE, 2), mean(statusIN, 2)); ...
    table(min(statusUS), min(statusDE), min(statusIN)); ...
    table(max(statusUS), max(statusDE), max(statusIN))];
statusTable.Properties.VariableNames = ["MW Natick", "MW München", "MW Bangalore"];
statusTable.Properties.RowNames = ["Total # of intervals", "Total interval time (hrs)",...
    "Mean interval length (min)", "Mean # of satellites in view", ...
    "Min # of satellites in view", "Max # of satellites in view"];
statusTable
statusTable=6×3 table
                                    MW Natick    MW München    MW Bangalore
                                    _________    __________    ____________

    Total # of intervals                 52            51             45
    Total interval time (hrs)        153.92        153.55         162.73
    Mean interval length (min)        177.6        180.65         216.98
    Mean # of satellites in view     6.4448        6.4289         6.8071
    Min # of satellites in view           4             4              4
    Max # of satellites in view           8             9              9

Walker-Delta constellations like Galileo are evenly distributed across longitudes. Natick and München are located at similar latitudes, and therefore have very similar access characteristics with respect to the constellation. Bangalore is at a latitude closer to the equator. Despite having a lower number of individual access intervals, it has the highest average number of satellites in view, the highest overall interval time, and the longest average interval duration (by 40 minutes). All locations always have a minimum of 4 satellites in view, as is required for GNSS trilateration.

References

[1] Wertz, James R, David F. Everett, and Jeffery J. Puschell. Space Mission Engineering: The New Smad. Hawthorne, CA: Microcosm Press, 2011. Print.

[2] The European Space Agency: Galileo Facts and Figures. https://www.esa.int/Applications/Navigation/Galileo/Facts_and_figures

See Also

Objects

Functions

Related Examples

More About
