ROS Parameters in Simulink

These examples show how to get, set, compare, and manipulate ROS parameters in Simulink^®. To run these examples, you must first set up a ROS network using rosinit. To set network-wide settings and share values with the whole network, start a ROS parameter server using rosparam. Follow these examples to see how to work with parameters in Simulink, including using string parameters.

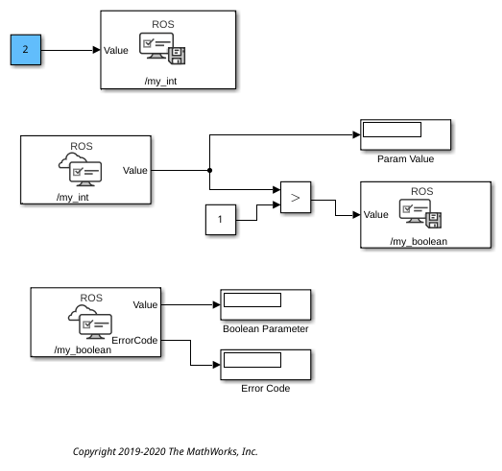

Get and Set ROS Parameters

This model gets and sets ROS parameters using Simulink®. This example illustrates how to use ROS parameters in Simulink and to share data over the ROS network. An integer value is set as a parameter on the ROS network. This integer is retrieved from the parameter server and compared to a constant. The output Boolean from the comparison is also set on the network. Change the constant block in the top left (blue) when you run the model to set network parameters based on user input conditions.

You must be connected to a ROS network. Call rosinit in the MATLAB® command line.

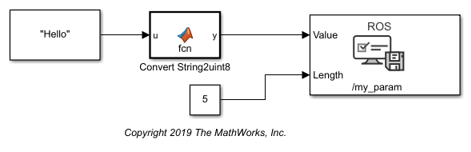

Set String Parameter on ROS Network

To create your string parameter, use a String Constant block and convert it to uint8 using a MATLAB function block. The converted uint8 string is passed into the Set Parameter block along with the extra input, Length, specified with a second Constant block. The Length refers to the maximum expected string length and is required for all string parameters. For more information, see the Set Parameter block.

Compare ROS String Parameters

On ROS networks, strings parameters are stored as a uint8 array. When you get from string parameters from the server, they are returned as a char array. In Simulink®, they are cast as uint8, so you must use uint8 character vectors when comparing to the ROS string parameters. You can use this comparison to trigger subsystems for larger models or validate settings for specific algorithms.

Connect to a ROS network. Set up the ROS Parameter tree.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158160 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158162 pts/1    S+     0:00 grep -E ros|python

Done in 0.84756 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
Status before getting PID :0
Result before getting PID :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158185 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158187 pts/1    S+     0:00 grep -E ros|python

Result:  158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3

Status: 0
PID obtained: 158165
Status after getting PID :0
Result after getting PID :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158192 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158194 pts/1    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158195 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158197 pts/1    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158198 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 813 -1 -mvmOutputPipe -1 819
 158213 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158215 pts/1    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158218 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158220 pts/1    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.20.22.69:53443.
Initializing global node /matlab_global_node_28561 with NodeURI http://dcc2631961glnxa64:37631/ and MasterURI http://localhost:53443.

ptree = rosparam;

Set a ROS parameter, /camera_format, to a string value. You can use string scalars or character vectors. The value is stored as a uint8 array on the ROS parameter server and returned as 'jpeg' in MATLAB®.

set(ptree,"/camera_format","jpeg")
pause(1)
pvalue = get(ptree,"/camera_format")

pvalue =
'jpeg'

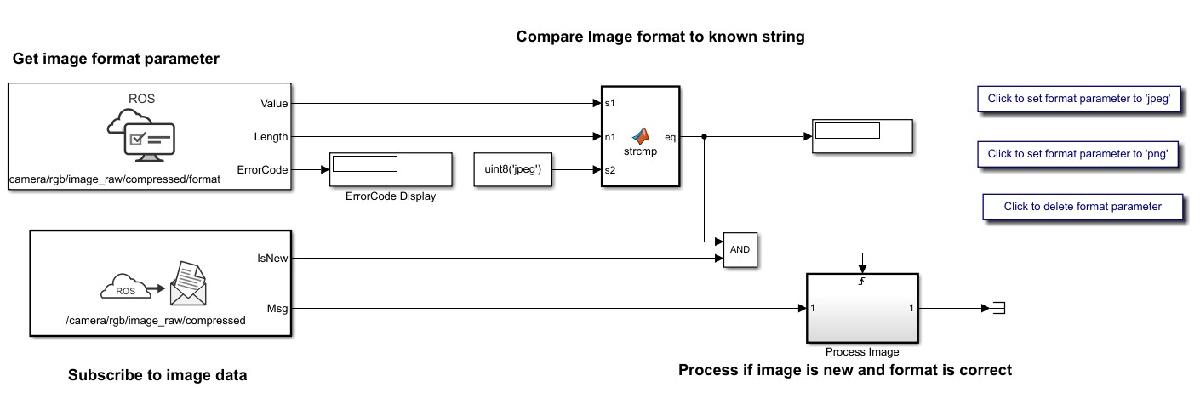

Run the attached Simulink® model. This model checks to see if the previously set camera format parameter is named 'jpeg'. To get the parameter off the server, use the Get Parameter block. Then, compare the parameter to a character vector cast as uint8 from a Constant block, using a MATLAB function block. An output of 1 means the parameters match.

open_system("rosStringParameterCompare")
sim("rosStringParameterCompare");

Status before deleting node :0
Result before deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158221 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 724 -1 -mvmOutputPipe -1 816
 158290 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 720 -1 -mvmOutputPipe -1 770
 158308 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158310 pts/1    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158221 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 724 -1 -mvmOutputPipe -1 816
 158314 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158316 pts/1    S+     0:00 grep -E ros|python

Shutdown ROS network.

rosshutdown

Shutting down global node /matlab_global_node_28561 with NodeURI http://dcc2631961glnxa64:37631/ and MasterURI http://localhost:53443.
Status before deleting node :0
Result before deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158221 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 724 -1 -mvmOutputPipe -1 816
 158318 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158320 pts/1    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158324 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158326 pts/1    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.20.22.69:53443.
Status before deleting core :0
Result before deleting core :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158165 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53443 -w 3
 158177 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53443 -w 3
 158327 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158329 pts/1    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 158165
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158334 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158336 pts/1    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *

The stringCompare function is defined as:

function y = stringCompare(str1,str2)
%#codegen
minLength = min(length(str1),length(str2));
st1 = str1(1:minLength);
st2 = str2(1:minLength);
y = all(st1(:)==st2(:));

Check Image Encoding Parameter for ROS Image Message

This model shows how to access string parameters and use them to trigger subsystem operations. It gets an image format off the set up ROS parameter server. It is retrieved as a uint8 array that is compared using the strcmp MATLAB function block. When a new image is received from the Subscribe block and the format is uint8('jpeg'), it triggers the "Process Image" block to perform a task on the image data.

Connect to a ROS network and set up the ROS parameter server.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157973 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 157975 pts/1    S+     0:00 grep -E ros|python

Done in 0.74194 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
Status before getting PID :0
Result before getting PID :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 157999 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158001 pts/1    S+     0:00 grep -E ros|python

Result:  157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3

Status: 0
PID obtained: 157979
Status after getting PID :0
Result after getting PID :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158006 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158008 pts/1    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158009 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158011 pts/1    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158012 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 723 -1 -mvmOutputPipe -1 728
 158027 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158029 pts/1    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158033 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158035 pts/1    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.20.22.69:53145.
Initializing global node /matlab_global_node_63799 with NodeURI http://dcc2631961glnxa64:39037/ and MasterURI http://localhost:53145.

ptree = rosparam;

Set the "/camera/rgb/image_raw/compressed/format" parameter, and set up a publisher for the "/camera/rgb/image_raw/compressed" topic.

set(ptree,"/camera/rgb/image_raw/compressed/format","jpeg")
pub = rospublisher("/camera/rgb/image_raw/compressed","sensor_msgs/CompressedImage");

Open the Simulink® model. This model checks the image format parameter and compares the value to a uint8 cast character vector, uint8('jpeg') using a MATLAB® Function block. The boolean output is fed to an AND operator with the IsNew output of a Subscribe block that gets the image off the network. If the parameter value is correct and a new message is received, the Subsystem "Process Image" is triggered.

Run the model and use the buttons in the model to change the image format parameter and verify the strcmp function works. The eq output should be 1 when the parameter is set to 'jpeg'. While the model is running, it is expected that image messages are being published on the network.

open_system("rosImageFormatParameter")

Shut down the ROS network.

rosshutdown

Shutting down global node /matlab_global_node_63799 with NodeURI http://dcc2631961glnxa64:39037/ and MasterURI http://localhost:53145.
Status before deleting node :0
Result before deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158036 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 720 -1 -mvmOutputPipe -1 726
 158114 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158116 pts/1    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158120 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158122 pts/1    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.20.22.69:53145.
Status before deleting core :0
Result before deleting core :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 157979 pts/1    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_246626/tp28d9b0da_c9ea_46bb_8de8_a896609cd5c2/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53145 -w 3
 157991 pts/1    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53145 -w 3
 158123 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158125 pts/1    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 157979
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    879 ?        Ssl    7:45 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1161 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 155051 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155081 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_246626 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155094 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 155148 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 156325 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 594 -1 -mvmOutputPipe -1 604
 158130 pts/1    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 158132 pts/1    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *

The strcmp function in the MATLAB® Function block is defined as:

function eq = strcmp(s1, n1, s2)
%#codegen

% Convert to proper strings
string1 = char(s1(1:n1));
string2 = char(s2);

eq = strcmp(string1, string2);
