# Credit Rating by Ordinal Multinomial Regression

This example shows how to use ordinal multinomial logistic regression to build a credit rating model that you can use in an automated credit rating process.

This example assumes that historical information is available in a data set and that each record contains the features of a borrower and the assigned credit rating. These features may be internal ratings that are assigned by a committee that follow bank policies and procedures. Alternatively, the ratings may come from a rating agency that uses them to initialize a new internal credit rating system. The process of training a model on previously rated borrowers for the purpose of predicting ratings in the future is called the *shadow rating *or *shadow bond* approach.

In this example, the existing historical data is the starting point. You can use this data to *train *the ordinal multinomial regression model. This training process falls in the category of *supervised learning*. You can then use the classifier to assign ratings to new customers. In practice, these automated or *predicted* ratings are most likely regarded as tentative and an internal committee of credit experts reviews the automated ratings. The classifier that you use in this example facilitates revising of these credit ratings because it provides a measure of certainty for the predicted ratings, the *rating probabilities*.

For an introduction to credit ratings and a related modeling workflow, see Credit Rating by Bagging Decision Trees.

**Load Data**

Load the historical data from the comma-delimited text file `CreditRating_Historical.csv`

. This example works with text files. If you have access to Database Toolbox™, you can load this information directly from a database.

The data set contains financial ratios, industry sectors, and credit ratings for a list of corporate borrowers. `CreditRating_Historical.csv`

is simulated data, not real data. The first column of this data is a customer ID. The data also contains the following five columns of financial ratios:

Working Capital / Total Assets (

`WC_TA`

)Retained Earnings / Total Assets (

`RE_TA`

)Earnings Before Interest and Taxes / Total Assets (

`EBIT_TA`

)Market Value of Equity / Book Value of Total Debt (

`MVE_BVTD`

)Sales / Total Assets (

`S_TA`

)

This list of ratios are the same ratios used in Altman's Z-score (see Altman [1]; see also Loeffler and Porsch [2] for a related analysis).

The data set also includes an industry sector label. In this simulated data set, the sector is an integer value ranging from `1`

to `12`

. In practice, the credit analyst has a mapping from the integer value to actual industry sectors. The last column has the credit rating assigned to the customer.

Load the data in a table array.

```
creditData = readtable("CreditRating_Historical.csv");
head(creditData)
```

ID WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry Rating _____ ______ ______ _______ ________ _____ ________ _______ 62394 0.013 0.104 0.036 0.447 0.142 3 {'BB' } 48608 0.232 0.335 0.062 1.969 0.281 8 {'A' } 42444 0.311 0.367 0.074 1.935 0.366 1 {'A' } 48631 0.194 0.263 0.062 1.017 0.228 4 {'BBB'} 43768 0.121 0.413 0.057 3.647 0.466 12 {'AAA'} 39255 -0.117 -0.799 0.01 0.179 0.082 4 {'CCC'} 62236 0.087 0.158 0.049 0.816 0.324 2 {'BBB'} 39354 0.005 0.181 0.034 2.597 0.388 7 {'AA' }

Convert the industry and rating variables into categorical variables. Since the industry sectors have no natural ordering, the industry variable is *nominal*. On the other hand, since the credit ratings, by definition, imply a ranking of creditworthiness, the rating variable is *ordinal*.

creditData.Industry = categorical(creditData.Industry); ratings = {'AAA', 'AA', 'A', 'BBB', 'BB', 'B', 'CCC'}; creditData.Rating = categorical(creditData.Rating,ratings,Ordinal=true);

Divide the data into training and test samples stratified by the credit rating.

rng(123); partition = cvpartition(creditData.Rating, HoldOut=0.20,Stratify=true); idTraining = training(partition); idTest = test(partition); creditDataTraining = creditData(idTraining, :); creditDataTest = creditData(idTest, :);

**Analyze Data**

Altman's original Z-score is calculated as follows:

$$Z=.012*WC\text{\_}TA+.014*RE\text{\_}TA+.033*EBIT\text{\_}TA+.006*MVE\text{\_}BVTD+.999*S\text{\_}TA.$$

According to Altman [1], a larger Z-score indicates better financial stability. As such, you expect that larger (positive) financial ratio values should be associated with better credit ratings.

Calculate the mean of each predictor variable by rating and then plot the result.

predictorVars = {'WC_TA', 'RE_TA', 'EBIT_TA', 'MVE_BVTD', 'S_TA'}; meanData = groupsummary(creditDataTraining,"Rating","mean",predictorVars); head(meanData)

Rating GroupCount mean_WC_TA mean_RE_TA mean_EBIT_TA mean_MVE_BVTD mean_S_TA ______ __________ __________ __________ ____________ _____________ _________ AAA 464 0.30652 0.59523 0.075183 7.3006 0.66068 AA 308 0.21535 0.39472 0.062006 2.7066 0.41138 A 460 0.18865 0.32324 0.05898 1.8155 0.32434 BBB 812 0.14162 0.2172 0.053106 1.0764 0.24781 BB 742 0.074796 0.078795 0.04347 0.5948 0.17675 B 256 -0.0041484 -0.1231 0.029625 0.35907 0.14666 CCC 104 -0.20825 -0.91529 -0.019558 0.16476 0.11195

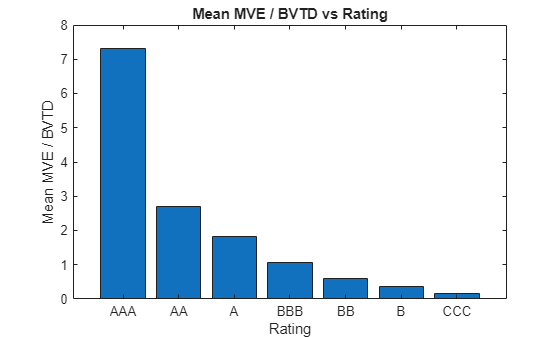

predictorVar = "mean_MVE_BVTD"; figure; predictorVarTitle = extractAfter(strrep(predictorVar, '_', ' / '), 6); bar(meanData.Rating, meanData.(predictorVar)); xlabel('Rating'); ylabel('Mean' + predictorVarTitle); title('Mean' + predictorVarTitle + ' vs Rating');

These plots for different `predictorVar`

values show that each predictor has the expected monotonic relationship with the credit ratings. Thus, each predictor is a candidate for inclusion in the credit rating model.

**Fit Regression Model**

Based on the data analysis, you can try fitting a model with all the financial ratios included as predictors. The larger (positive) values of the predictor variables are expected to be associated with better credit ratings. In terms of the model, the coefficients of the predictor variables are expected to be positive. However, the coefficients of the predictor variables are not as expected and they have negative values.

Use `fitmnr`

to estimate the multinomial regression model.

creditRatingModelFull = fitmnr(creditDataTraining,'Rating', ... PredictorNames={'WC_TA', 'RE_TA', 'EBIT_TA', 'MVE_BVTD', 'S_TA', 'Industry'}, ... ModelType='ordinal')

creditRatingModelFull = Multinomial regression with ordinal responses Value SE tStat pValue ________ _______ _______ ___________ (Intercept_AAA) -29.83 0.90366 -33.01 5.8391e-239 (Intercept_AA) -22.031 0.6869 -32.073 1.0477e-225 (Intercept_A) -15.394 0.52426 -29.364 1.593e-189 (Intercept_BBB) -8.8834 0.39291 -22.61 3.4933e-113 (Intercept_BB) -3.5429 0.34197 -10.36 3.7611e-25 (Intercept_B) 0.77167 0.39681 1.9447 0.051815 WC_TA -1.5319 1.0838 -1.4134 0.15754 RE_TA 7.4895 0.62112 12.058 1.7584e-33 EBIT_TA 31.849 6.9004 4.6155 3.9218e-06 MVE_BVTD 7.6513 0.26161 29.246 4.9803e-188 S_TA -1.7843 0.73329 -2.4333 0.014962 Industry_2 -0.50146 0.23203 -2.1612 0.030679 Industry_3 2.2889 0.23437 9.7659 1.5772e-22 Industry_4 -0.58607 0.23618 -2.4814 0.013086 Industry_5 0.72326 0.23163 3.1224 0.0017937 Industry_6 2.2912 0.24286 9.4344 3.9336e-21 Industry_7 1.3539 0.23262 5.8203 5.8753e-09 Industry_8 0.70192 0.22679 3.095 0.0019683 Industry_9 -0.71042 0.23218 -3.0597 0.0022155 Industry_10 -1.057 0.23019 -4.5917 4.3969e-06 Industry_11 1.9223 0.23771 8.0867 6.1285e-16 Industry_12 0.91313 0.23524 3.8817 0.00010375 3146 observations, 18854 error degrees of freedom Dispersion: 1 Chi^2-statistic vs. constant model: 8332.7446, p-value = 0

Removing the variables with negative signs, $$WC\text{\_}TA$$ and $$S\text{\_}TA$$, produces a model with the expected signs for all predictors. In this case, the example uses a simplified analysis and, during actual model development, a credit analyst investigates why the full model does not have the expected signs for all predictors.

The reference category `CCC`

no intercept. One heuristic is that the reference intercept is $$+\infty $$. Therefore, the intercepts are in monotonic order, as expected.

creditRatingModel = fitmnr(creditDataTraining,'Rating', ... PredictorNames={'RE_TA', 'EBIT_TA', 'MVE_BVTD', 'Industry'}, ... ModelType='ordinal')

creditRatingModel = Multinomial regression with ordinal responses Value SE tStat pValue ________ _______ _______ ___________ (Intercept_AAA) -29.75 0.8963 -33.192 1.3881e-241 (Intercept_AA) -22.013 0.67284 -32.717 8.9453e-235 (Intercept_A) -15.421 0.49656 -31.055 9.8418e-212 (Intercept_BBB) -8.9039 0.34906 -25.508 1.608e-143 (Intercept_BB) -3.5606 0.29489 -12.074 1.443e-33 (Intercept_B) 0.70634 0.37306 1.8933 0.058311 RE_TA 7.1973 0.59377 12.121 8.1429e-34 EBIT_TA 26.297 4.2685 6.1607 7.2425e-10 MVE_BVTD 7.4095 0.23391 31.676 3.336e-220 Industry_2 -0.50867 0.23166 -2.1958 0.028109 Industry_3 2.2767 0.23359 9.7467 1.9061e-22 Industry_4 -0.59657 0.23586 -2.5294 0.011427 Industry_5 0.71436 0.23083 3.0947 0.0019699 Industry_6 2.2896 0.24274 9.4324 4.0087e-21 Industry_7 1.3495 0.23211 5.814 6.1008e-09 Industry_8 0.69903 0.22628 3.0893 0.0020063 Industry_9 -0.72896 0.23189 -3.1436 0.0016688 Industry_10 -1.0512 0.22946 -4.5812 4.6242e-06 Industry_11 1.9104 0.23709 8.0577 7.7714e-16 Industry_12 0.89563 0.23466 3.8166 0.00013529 3146 observations, 18856 error degrees of freedom Dispersion: 1 Chi^2-statistic vs. constant model: 8324.8974, p-value = 0

**Predict Ratings and Probabilities**

You can use the multinomial regression model generated by `fitmnr`

to predict a rating for each observation. In addition, this model provides probability estimates for each rating. The predicted rating is the favored rating. In other words, the predicted rating is equal to the rating with the highest predicted probability. Use this multinomial regression model to predict ratings on both the training data and the test data.

ratingPredictedTraining = []; ratingPredictedTest = []; ratingProbabilitiesTraining = []; ratingProbabilitiesTest = []; datasets = {creditDataTraining, creditDataTest}; for i = 1:length(datasets) [ratingPredicted, ratingProbabilities] = predict(creditRatingModel, datasets{i}); ratingPredictedTable = array2table(ratingPredicted, VariableNames={'ratingPredicted'}); ratingProbabilityNames = {'AAAProbPredicted', 'AAProbPredicted', 'AProbPredicted', 'BBBProbPredicted', 'BBProbPredicted', 'BProbPredicted', 'CCCProbPredicted'}; ratingProbabilitiesTable = array2table(ratingProbabilities, VariableNames=ratingProbabilityNames); if i == 1 ratingPredictedTraining = ratingPredictedTable; ratingProbabilitiesTraining = ratingProbabilitiesTable; else ratingPredictedTest = ratingPredictedTable; ratingProbabilitiesTest = ratingProbabilitiesTable; end end creditDataRatingsTraining = [creditDataTraining, ratingPredictedTraining, ratingProbabilitiesTraining]; creditDataRatingsTraining = addprop(creditDataRatingsTraining,PlotName="table"); creditDataRatingsTraining.Properties.CustomProperties.PlotName="Training"; creditDataRatingsTest = [creditDataTest, ratingPredictedTest, ratingProbabilitiesTest]; creditDataRatingsTest = addprop(creditDataRatingsTest,PlotName="table"); creditDataRatingsTest.Properties.CustomProperties.PlotName="Test";

Consider an individual observation from the training data. The rating with the largest predicted probability is `BB`

. In this case, the model assigns the correct rating.

disp(creditDataRatingsTraining(1,:))

ID WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry Rating ratingPredicted AAAProbPredicted AAProbPredicted AProbPredicted BBBProbPredicted BBProbPredicted BProbPredicted CCCProbPredicted _____ _____ _____ _______ ________ _____ ________ ______ _______________ ________________ _______________ ______________ ________________ _______________ ______________ ________________ 62394 0.013 0.104 0.036 0.447 0.142 3 BB BB 1.7499e-10 4.0078e-07 0.00029215 0.16492 0.81121 0.023243 0.00033861

In this case, `BB`

is again the rating with the largest predicted probability. However, the actual rating is `BBB`

.

disp(creditDataRatingsTraining(5,:))

ID WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry Rating ratingPredicted AAAProbPredicted AAProbPredicted AProbPredicted BBBProbPredicted BBProbPredicted BProbPredicted CCCProbPredicted _____ _____ _____ _______ ________ _____ ________ ______ _______________ ________________ _______________ ______________ ________________ _______________ ______________ ________________ 62236 0.087 0.158 0.049 0.816 0.324 2 BBB BB 3.4514e-10 7.9046e-07 0.00057605 0.28017 0.70715 0.011925 0.00017171

### Validate Regression Model

Compute the validation statistics on both the training and the test data. In general, the statistics should be comparable across these two data sets.

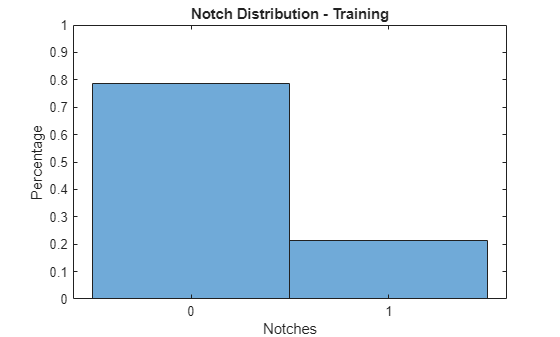

Since the credit ratings are ordinal, you can consider the absolute difference between the predicted and actual ratings, which are referred to as *notches*. All predictions are within `1`

notch of the actual rating for both the training and the test data.

validationData = creditDataRatingsTraining; notches = abs(double(validationData.Rating) - double(validationData.ratingPredicted)); figure; histogram(notches,2,Normalization='probability'); xlabel('Notches'); ylabel('Percentage'); title(sprintf('Notch Distribution - %s', validationData.Properties.CustomProperties.PlotName)); ylim([0,1]); xticks([0.25, 0.75]); xticklabels({'0', '1'});

The accuracy rate on the training data is over 78%. The accuracy rate on the test data is higher at over 80%.

validationData = creditDataRatingsTest; cm = confusionmat(validationData.Rating, validationData.ratingPredicted); accuracy = sum(diag(cm)) / sum(cm(:)); fprintf('The overall accuracy on the %s data is %.2f%%\n', validationData.Properties.CustomProperties.PlotName, accuracy*100);

The overall accuracy on the Test data is 80.53%

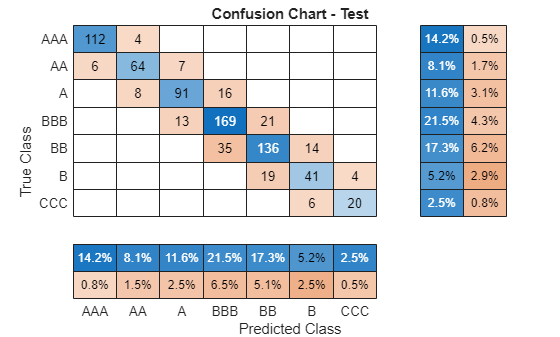

The following confusion chart summarizes the model's predictive power. The distribution of predicted classes is similar between the training and test data, at both an overall level, and within each rating group.

figure; cc = confusionchart(cm, ratings,ColumnSummary='total-normalized',RowSummary='total-normalized'); sortClasses(cc,ratings); title(sprintf('Confusion Chart - %s', validationData.Properties.CustomProperties.PlotName));

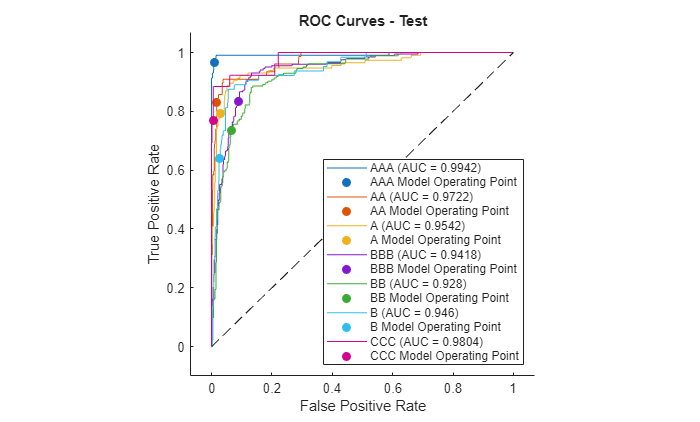

The receiver operating characteristic (ROC)* *curve* *is an additional measure of model accuracy. The ROC values are stable across all the ratings. Moreover, the values on the training and test data are comparable. Based on the ROC values, the model has strong discriminatory power.

validationData = creditDataRatingsTest; includeRocAAA = false; includeRocAA = true; includeRocA = true; includeRocBBB = true; includeRocBB = false; includeRocB = false; includeRocCCC = false; includeRoc = [includeRocAAA, includeRocAA, includeRocA, includeRocBBB, includeRocBB, includeRocB, includeRocCCC]; ratingProbabilities = validationData(:,10:16); rocOBJ = rocmetrics(validationData.Rating, table2array(ratingProbabilities), ratings); figure; plot(rocOBJ, "ClassNames", ratings(includeRoc)) title(sprintf('ROC Curves - %s', validationData.Properties.CustomProperties.PlotName));

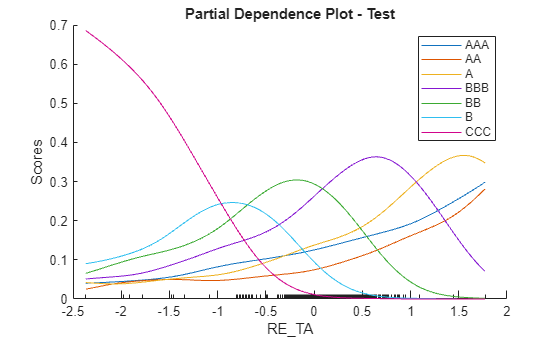

Partial dependence plots (PDPs) are an interpretability technique that allow you to examine the effect of a predictor on the overall model prediction. In this case, PDP plots help you to visualize the relationship between financial ratios and the probability of being in a particular rating class. For `AAA`

, the curve is increasing for all variables. The relationship between each numeric predictor variable and credit quality is monotonically increasing. At the other extreme, the curves for `CCC`

are monotonically decreasing. In other cases (for example, `EBIT_TA`

for rating `B`

), the curve increases, reaches a maximum, and then decreases. Once a numeric predictor increases sufficiently, it becomes more likely that the model will assign a higher rating.

validationData = creditDataRatingsTest; includePdpAAA = true; includePdpAA = true; includePdpA = true; includePdpBBB = true; includePdpBB = true; includePdpB = true; includePdpCCC = true; includePdp = [includePdpAAA, includePdpAA, includePdpA, includePdpBBB, includePdpBB, includePdpB, includePdpCCC]; figure; plotPartialDependence(creditRatingModel,'RE_TA', ratings(includePdp), validationData) title(sprintf('Partial Dependence Plot - %s', validationData.Properties.CustomProperties.PlotName));

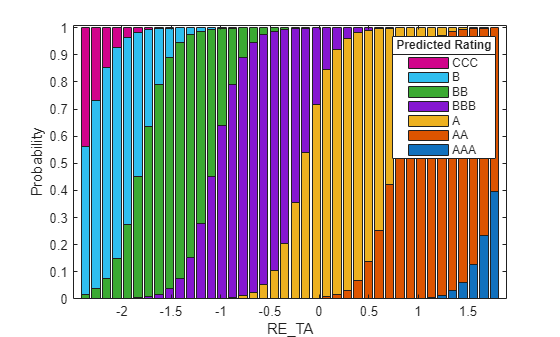

An alternative view is to consider stacked histograms, which confirm the same trends indicated in the PDP plots.

validationData = creditDataRatingsTest; figure; plotSlice(creditRatingModel, "stackedhist", validationData, "PredictorToVary", "RE_TA") lgd = legend; title(lgd, "Predicted Rating")

### References

[1] Altman, E. "Financial Ratios, Discriminant Analysis and the Prediction of Corporate Bankruptcy." *Journal of Finance*. Vol. 23, No. 4, September 1968, pp. 589–609.

[2] Löeffler, G., and P. N. Posch. *Credit Risk Modeling Using Excel and VBA*. West Sussex, England, Wiley Finance, 2007.
