This example shows how to solve a Poisson's equation with a delta-function point source on the unit disk using the `adaptmesh`

function.

Specifically, solve the Poisson's equation

$$-\Delta u=\delta (x,y)$$

on the unit disk with zero Dirichlet boundary conditions. The exact solution expressed in polar coordinates is

$$u(r,\theta )=\frac{\mathrm{log}(r)}{2\pi},$$

which is singular at the origin.

By using adaptive mesh refinement, Partial Equation Toolbox™ can accurately find the solution everywhere away from the origin.

The following variables define the problem:

`c`

,`a`

: The coefficients of the PDE.`f`

: A function that captures a point source at the origin. It returns 1/area for the triangle containing the origin and 0 for other triangles.

c = 1; a = 0; f = @circlef;

Create a PDE Model with a single dependent variable.

numberOfPDE = 1; model = createpde(numberOfPDE);

Create a geometry and include it in the model. For more information, see the |circleg| and |pdegeom| pages.

g = @circleg; geometryFromEdges(model,g);

Plot the geometry and display the edge labels.

figure; pdegplot(model,'EdgeLabels','on'); axis equal title 'Geometry With Edge Labels Displayed';

Specify the zero solution at all four outer edges of the circle.

applyBoundaryCondition(model,'dirichlet','Edge',(1:4),'u',0);

`adaptmesh`

solves elliptic PDEs using the adaptive mesh generation. The 'tripick' parameter lets you specify a function that returns which triangles will be refined in the next iteration. `circlepick`

returns triangles with computed error estimates greater a given tolerance. The tolerance is provided to `circlepick`

using the 'par' parameter.

[u,p,e,t] = adaptmesh(g,model,c,a,f,'tripick','circlepick','maxt',2000,'par',1e-3);

Number of triangles: 258 Number of triangles: 515 Number of triangles: 747 Number of triangles: 1003 Number of triangles: 1243 Number of triangles: 1481 Number of triangles: 1705 Number of triangles: 1943 Number of triangles: 2155 Maximum number of triangles obtained.

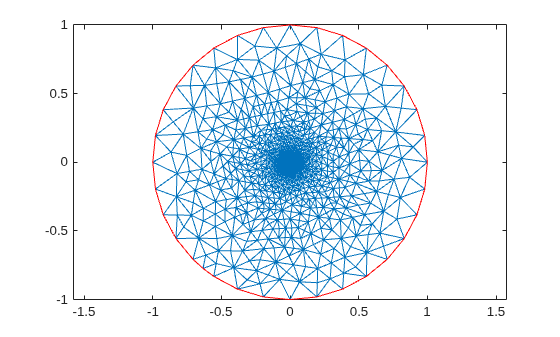

Plot the finest mesh.

```
figure;
pdemesh(p,e,t);
axis equal
```

Plot the error values.

x = p(1,:)'; y = p(2,:)'; r = sqrt(x.^2+y.^2); uu = -log(r)/2/pi; figure; pdeplot(p,e,t,'XYData',u-uu,'ZData',u-uu,'Mesh','off');

Plot the FEM solution on the finest mesh.

figure; pdeplot(p,e,t,'XYData',u,'ZData',u,'Mesh','off');
