Eigenvalues and Eigenmodes of Square

This example shows how to compute the eigenvalues and eigenmodes of a square domain.

The eigenvalue PDE problem is -Δu=λu. This example finds the eigenvalues smaller than 10 and the corresponding eigenmodes.

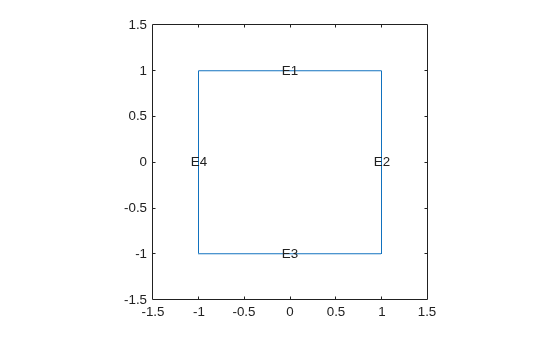

Create a model. Import and plot the geometry. The geometry description file for this problem is called squareg.m.

model = createpde();

axis equal

Specify the Dirichlet boundary condition u=0 for the left boundary.


Specify the zero Neumann boundary condition for the upper and lower boundary.


Specify the generalized Neumann condition un-34u=0 for the right boundary.


The eigenvalue PDE coefficients for this problem are c = 1, a = 0, and d = 1. You can enter the eigenvalue range r as the vector [-Inf 10].

r = [-Inf,10];

Create a mesh and solve the problem.

results = solvepdeeig(model,r);

There are six eigenvalues smaller than 10 for this problem.

l = results.Eigenvalues
l = 5×1

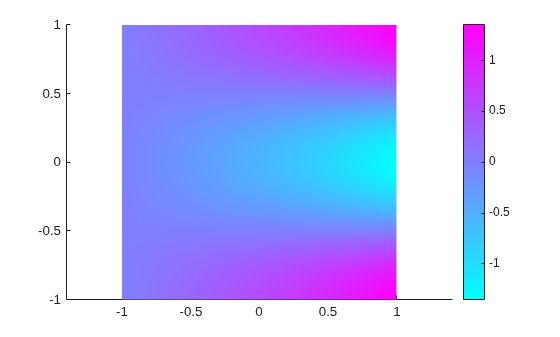

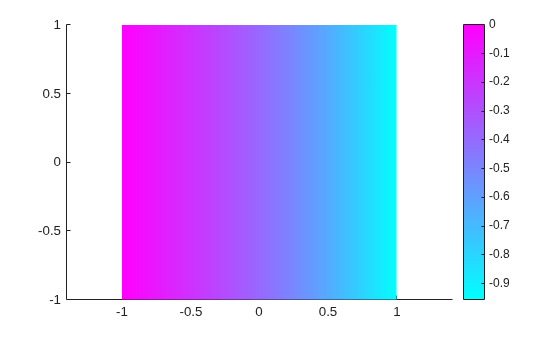

Plot the first and last eigenfunctions in the specified range.

u = results.Eigenvectors;


This problem is separable, meaning


The functions f and g are eigenfunctions in the x and y directions, respectively. In the x direction, the first eigenmode is a slowly increasing exponential function. The higher modes include sinusoids. In the y direction, the first eigenmode is a straight line (constant), the second is half a cosine, the third is a full cosine, the fourth is one and a half full cosines, etc. These eigenmodes in the y direction are associated with the eigenvalues


It is possible to trace the preceding eigenvalues in the eigenvalues of the solution. Looking at a plot of the first eigenmode, you can see that it is made up of the first eigenmodes in the x and y directions. The second eigenmode is made up of the first eigenmode in the x direction and the second eigenmode in the y direction.

Look at the difference between the first and the second eigenvalue compared to π2/4:

l(2) - l(1) - pi^2/4
ans = 1.6384e-07

Likewise, the fifth eigenmode is made up of the first eigenmode in the x direction and the third eigenmode in the y direction. As expected, l(5)-l(1) is approximately equal to π2:

l(5) - l(1) - pi^2
ans = 6.0397e-06

You can explore higher modes by increasing the search range to include eigenvalues greater than 10.
