Remove hidden lines from mesh plot
Hidden line removal draws only those lines that are not obscured
by other objects in a 3-D view. The
only applies to surface plot objects that have a uniform
hidden on turns on hidden
line removal for the current mesh plot so lines in the back of a mesh
are hidden by those in front. This is the default behavior.
hidden off turns off hidden
line removal for the current mesh plot.
hidden toggles the hidden
line removal state.
hidden(ax,...) modifies surface objects in the axes specified by
ax instead of the current axes.
Show Obscured Lines

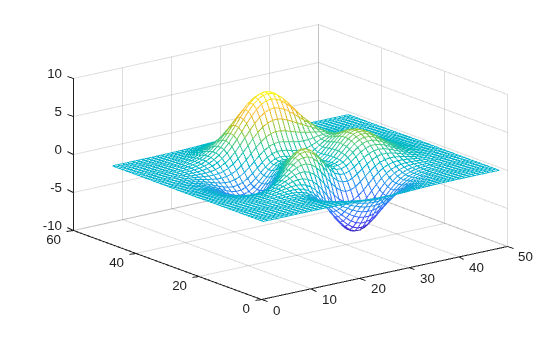

Create a mesh plot of the

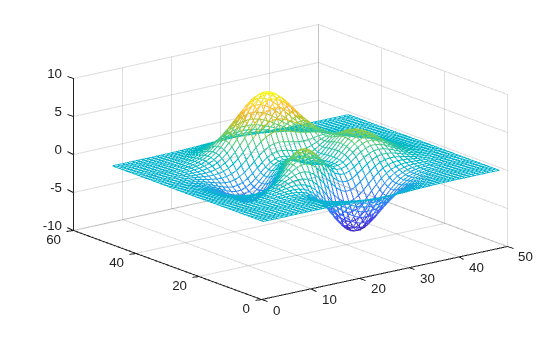

By default, MATLAB® hides obscured lines from the view. Show the obscured parts of the mesh by setting the hidden line removal to
When a surface graphics object has a uniform
FaceColor matching the
Color property of the axes,
hidden off sets the
FaceColor of the surface object to
hidden on sets the
of such surface objects to match the axes
(or to match that of the figure, if axes
Introduced before R2006a
