Integer Arithmetic

Load Integer Signal Data

Load measurement datasets comprising signals from four instruments using 8 and 16-bit A-to-D's resulting in data saved as int8, int16 and uint16. Time is stored as uint16.

load integersignal

% Look at variables
whos Signal1 Signal2 Signal3 Signal4 Time1

  Name            Size            Bytes  Class     Attributes

  Signal1      7550x1              7550  int8
  Signal2      7550x1              7550  int8
  Signal3      7550x1             15100  int16
  Signal4      7550x1             15100  uint16
  Time1        7550x1             15100  uint16

Plot Data

First we will plot two of the signals to see the signal ranges.

plot(Time1, Signal1, Time1, Signal2);
grid;
legend('Signal1','Signal2');

It is likely that these values would need to be scaled to calculate the actual physical value that the signal represents, for example, Volts.

Process Data

We can perform standard arithmetic on integers such as +, -, *, and /. Let's say we wished to find the sum of Signal1 and Signal2.

SumSig = Signal1 + Signal2; % Here we sum the integer signals.

Now let's plot the sum signal and see where it saturates.

cla;
plot(Time1, SumSig);
hold on
Saturated = (SumSig == intmin('int8')) | (SumSig == intmax('int8')); % Find where it has saturated
plot(Time1(Saturated),SumSig(Saturated),'rd')
grid
hold off

The markers show where the signal has saturated.

Load Integer Image Data

Next we will look at arithmetic on some image data.

street1 = imread('street1.jpg'); % Load image data
street2 = imread('street2.jpg');
whos street1 street2

  Name           Size                Bytes  Class    Attributes

  street1      480x640x3            921600  uint8
  street2      480x640x3            921600  uint8

Here we see the images are 24-bit color, stored as three planes of uint8 data.

Display Images

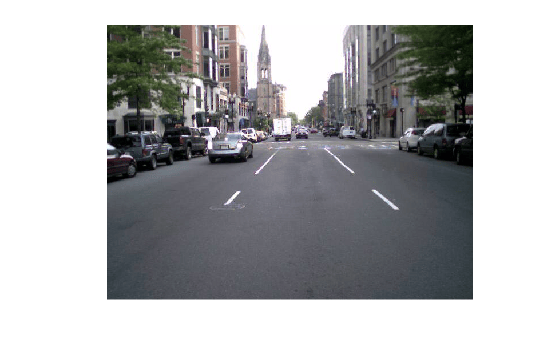

Display first image.

cla;
image(street1); % Display image
axis equal
axis off

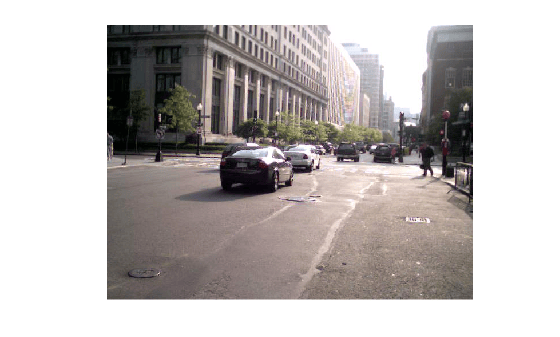

Display second image.

image(street2); % Display image
axis equal
axis off

Scale an Image

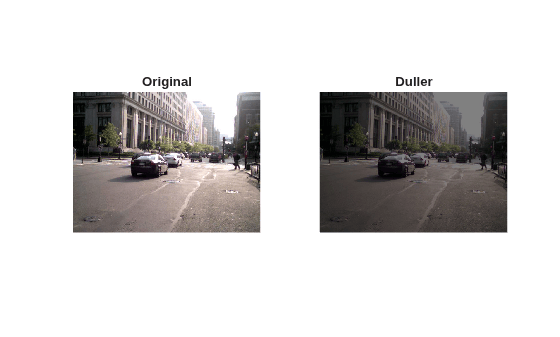

We can scale the image by a double precision constant but keep the image stored as integers. For example,

duller = 0.5 * street2; % Scale image with a double constant but create an integer
whos duller

  Name          Size                Bytes  Class    Attributes

  duller      480x640x3            921600  uint8

subplot(1,2,1);
image(street2);
axis off equal tight
title('Original');  % Display image

subplot(1,2,2);
image(duller);
axis off equal tight
title('Duller');    % Display image

Add the Images

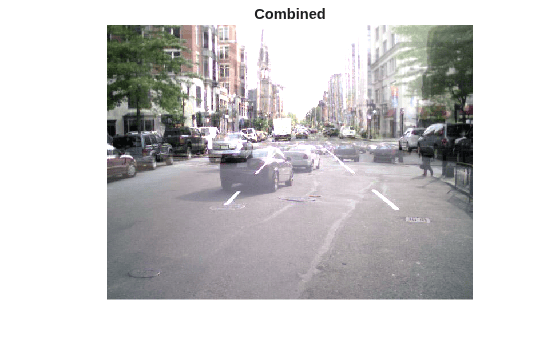

We can add the two street images together and plot the ghostly result.

combined = street1 + duller; % Add |uint8| images
subplot(1,1,1)
cla;
image(combined); % Display image
title('Combined');
axis equal
axis off
