Sparse Matrix Reordering

This example shows how reordering the rows and columns of a sparse matrix can influence the speed and storage requirements of a matrix operation.

Visualizing a Sparse Matrix

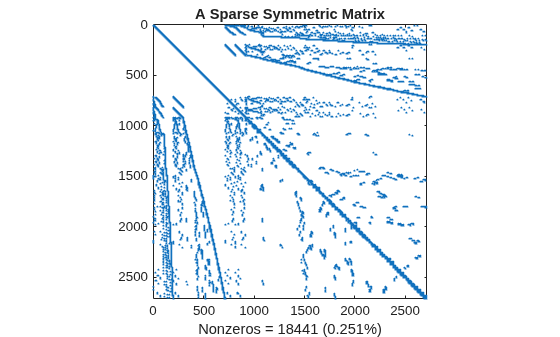

A spy plot shows the nonzero elements in a matrix.

This spy plot shows a sparse symmetric positive definite matrix derived from a portion of the barbell matrix. This matrix describes connections in a graph that resembles a barbell.

load barbellgraph.mat
S = A + speye(size(A));
pct = 100 / numel(A);
spy(S)
title('A Sparse Symmetric Matrix')
nz = nnz(S);
xlabel(sprintf('Nonzeros = %d (%.3f%%)',nz,nz*pct));

Figure contains an axes object. The axes object with title A Sparse Symmetric Matrix contains an object of type line.

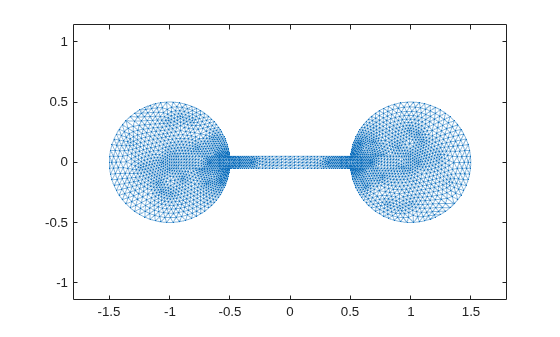

Here is a plot of the barbell graph.

G = graph(S,'omitselfloops');
p = plot(G,'XData',xy(:,1),'YData',xy(:,2),'Marker','.');
axis equal

Figure contains an axes object. The axes object contains an object of type graphplot.

Computing the Cholesky Factor

Compute the Cholesky factor L, where S = L*L'. Notice that L contains many more nonzero elements than the unfactored S, because the computation of the Cholesky factorization creates fill-in nonzeros. These fill-in values slow down the algorithm and increase storage cost.

L = chol(S,'lower');
spy(L)
title('Cholesky Decomposition of S')
nc(1) = nnz(L);
xlabel(sprintf('Nonzeros = %d (%.2f%%)',nc(1),nc(1)*pct));

Figure contains an axes object. The axes object with title Cholesky Decomposition of S contains an object of type line.

Reordering to Speed Up Calculation

By reordering the rows and columns of a matrix, it is possible to reduce the amount of fill-in that factorization creates, thereby reducing the time and storage cost of subsequent calculations.

Several different reorderings supported by MATLAB® are:

  • colperm: Column count

  • symrcm: Reverse Cuthill-McKee

  • amd: Minimum degree

  • dissect: Nested dissection

Test the effects of these sparse matrix reorderings on the barbell matrix.

Column Count Reordering

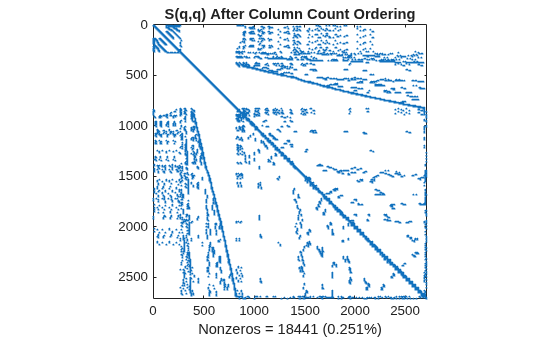

The colperm command uses the column count reordering algorithm to move rows and columns with higher nonzero count towards the end of the matrix.

q = colperm(S);
spy(S(q,q))
title('S(q,q) After Column Count Ordering')
nz = nnz(S);
xlabel(sprintf('Nonzeros = %d (%.3f%%)',nz,nz*pct));

Figure contains an axes object. The axes object with title S(q,q) After Column Count Ordering contains an object of type line.

For this matrix, the column count ordering can barely reduce the time and storage for Cholesky factorization.

L = chol(S(q,q),'lower');
spy(L)
title('chol(S(q,q)) After Column Count Ordering')
nc(2) = nnz(L);
xlabel(sprintf('Nonzeros = %d (%.2f%%)',nc(2),nc(2)*pct));

Figure contains an axes object. The axes object with title chol(S(q,q)) After Column Count Ordering contains an object of type line.

Reverse Cuthill-McKee Reordering

The symrcm command uses the reverse Cuthill-McKee reordering algorithm to move all nonzero elements closer to the diagonal, reducing the bandwidth of the original matrix.

d = symrcm(S);
spy(S(d,d))
title('S(d,d) After Cuthill-McKee Ordering')
nz = nnz(S);
xlabel(sprintf('Nonzeros = %d (%.3f%%)',nz,nz*pct));

Figure contains an axes object. The axes object with title S(d,d) After Cuthill-McKee Ordering contains an object of type line.

The fill-in produced by Cholesky factorization is confined to the band, so factorizing the reordered matrix takes less time and less storage.

L = chol(S(d,d),'lower');
spy(L)
title('chol(S(d,d)) After Cuthill-McKee Ordering')
nc(3) = nnz(L);
xlabel(sprintf('Nonzeros = %d (%.2f%%)', nc(3),nc(3)*pct));

Figure contains an axes object. The axes object with title chol(S(d,d)) After Cuthill-McKee Ordering contains an object of type line.

Minimum Degree Reordering

The amd command uses an approximate minimum degree algorithm (a powerful graph-theoretic technique) to produce large blocks of zeros in the matrix.

r = amd(S);
spy(S(r,r))
title('S(r,r) After Minimum Degree Ordering')
nz = nnz(S);
xlabel(sprintf('Nonzeros = %d (%.3f%%)',nz,nz*pct));

Figure contains an axes object. The axes object with title S(r,r) After Minimum Degree Ordering contains an object of type line.

The Cholesky factorization preserves the blocks of zeros produced by the minimum degree algorithm. This structure can significantly reduce time and storage costs.

L = chol(S(r,r),'lower');
spy(L)
title('chol(S(r,r)) After Minimum Degree Ordering')
nc(4) = nnz(L);
xlabel(sprintf('Nonzeros = %d (%.2f%%)',nc(4),nc(4)*pct));

Figure contains an axes object. The axes object with title chol(S(r,r)) After Minimum Degree Ordering contains an object of type line.

Nested Dissection Permutation

The dissect function uses graph-theoretic techniques to produce fill-reducing orderings. The algorithm treats the matrix as the adjacency matrix of a graph, coarsens the graph by collapsing vertices and edges, reorders the smaller graph, and then uses refinement steps to uncoarsen the small graph and produce a reordering of the original graph. The result is a powerful algorithm that frequently produces the least amount of fill-in compared to the other reordering algorithms.

p = dissect(S);
spy(S(p,p))
title('S(p,p) After Nested Dissection Ordering')
nz = nnz(S);
xlabel(sprintf('Nonzeros = %d (%.3f%%)',nz,nz*pct));

Figure contains an axes object. The axes object with title S(p,p) After Nested Dissection Ordering contains an object of type line.

Similar to the minimum degree ordering, the Cholesky factorization of the nested dissection ordering mostly preserves the nonzero structure of S(d,d) below the main diagonal.

L = chol(S(p,p),'lower');
spy(L)
title('chol(S(p,p)) After Nested Dissection Ordering')
nc(5) = nnz(L);
xlabel(sprintf('Nonzeros = %d (%.2f%%)',nc(5),nc(5)*pct));

Figure contains an axes object. The axes object with title chol(S(p,p)) After Nested Dissection Ordering contains an object of type line.

Summarizing Results

This bar chart summarizes the effects of reordering the matrix before performing the Cholesky factorization. While the Cholesky factorization of the original matrix had about 8% of its elements as nonzeros, using dissect or symamd reduces that density to less than 1%.

labels = {'Original','Column Count','Cuthill-McKee',...
    'Min Degree','Nested Dissection'};
bar(nc*pct)
title('Nonzeros After Cholesky Factorization')
ylabel('Percent');
ax = gca;
ax.XTickLabel = labels;
ax.XTickLabelRotation = -45;

Figure contains an axes object. The axes object with title Nonzeros After Cholesky Factorization contains an object of type bar.
