When you create surface plots using functions such as
mesh, you can
customize the color scheme by calling the
colormap function. If
you want further control over the appearance, you can change the direction
or pattern of the colors across the surface. This customization requires
changing values in an array that controls the relationship between the
surface and the colormap.
CData property of a
contains an indexing array
C that associates
specific locations in your plot with colors in the colormap.
C has the following relationship to the
surface z =
C is the same size as
is the array containing the values of
at each grid point on the surface.
The value at
controls the color at the grid location
(i,j) on the surface.
C is equal to
Z, which corresponds to colors
varying with altitude.
By default, the range of
maps linearly to the number of rows in the
For example, a 3-by-3 sampling of
Z = X +
Y has the following relationship to a colormap
Notice that the smallest value
-2) maps to the first row in the
colormap. The largest value (
2) maps to the last
row in the colormap. The intermediate values in
map linearly to the intermediate rows in the colormap.
The preceding surface plot shows how colors are
assigned to vertices on the surface. However, the
default behavior is to fill the patch faces with
solid color. That solid color is based on the colors
assigned to the surrounding vertices. For more
information, see the
FaceColor property description.

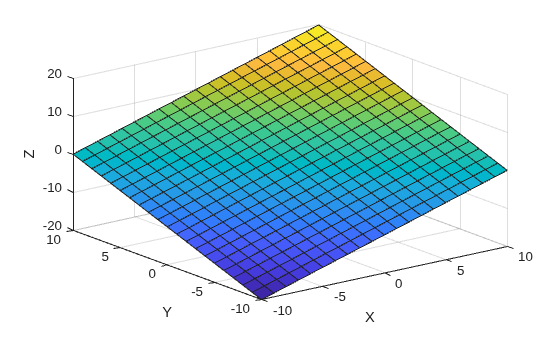

When using the default value of
C=Z, the colors vary with changes in
[X,Y] = meshgrid(-10:10); Z = X + Y; s = surf(X,Y,Z); xlabel('X'); ylabel('Y'); zlabel('Z');

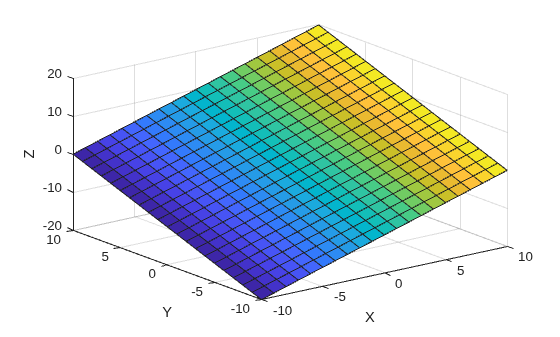

You can change this behavior by specifying
C when you create the surface. For example, the colors on this surface vary with
C = X; s = surf(X,Y,Z,C); xlabel('X'); ylabel('Y'); zlabel('Z');

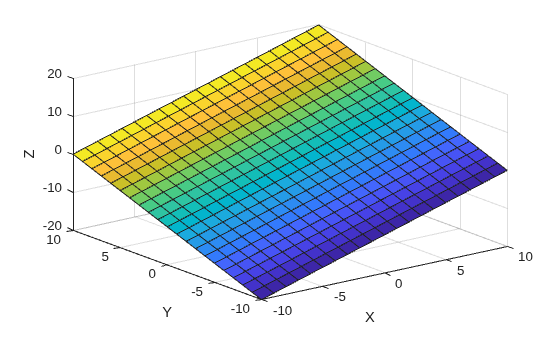

Alternatively, you can set the
CData property directly. This command makes the colors vary with
s.CData = Y;
The colors do not need to follow changes in a single dimension. In fact,
CData can be any array that is the same size as
Z. For example, the colors on this plane follow the shape of a sinc function.
R = sqrt(X.^2 + Y.^2) + eps; s.CData = sin(R)./(R);
