Dealing with Multi-Variable Systems: Identification and Analysis

This example shows how to deal with data with several input and output channels (MIMO data). Common operations, such as viewing the MIMO data, estimating and comparing models, and viewing the corresponding model responses are highlighted.

The Data Set

We start by looking at the data set SteamEng.

load SteamEng

This data set is collected from a laboratory scale steam engine. It has the inputs Pressure of the steam (actually compressed air) after the control valve, and Magnetization voltage over the generator connected to the output axis.

The outputs are Generated voltage in the generator and Rotational speed of the generator (Frequency of the generated AC voltage).The sample time was 50 ms.

First collect the measured channels into an iddata object:

steam = iddata([GenVolt,Speed],[Pressure,MagVolt],0.05);
steam.InputName  = {'Pressure';'MagVolt'};
steam.OutputName = {'GenVolt';'Speed'};

Let us have a look at the data

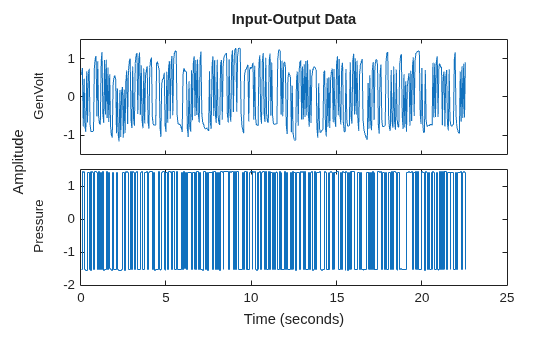

plot(steam(:,1,1))

Figure contains 2 axes. Axes 1 with title GenVolt contains an object of type line. This object represents untitled1. Axes 2 with title Pressure contains an object of type line. This object represents untitled1.

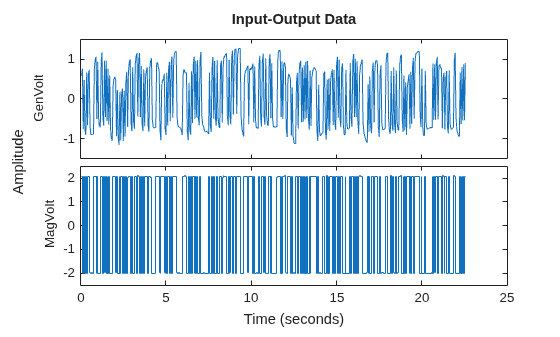

plot(steam(:,1,2))

Figure contains 2 axes. Axes 1 with title GenVolt contains an object of type line. This object represents untitled1. Axes 2 with title MagVolt contains an object of type line. This object represents untitled1.

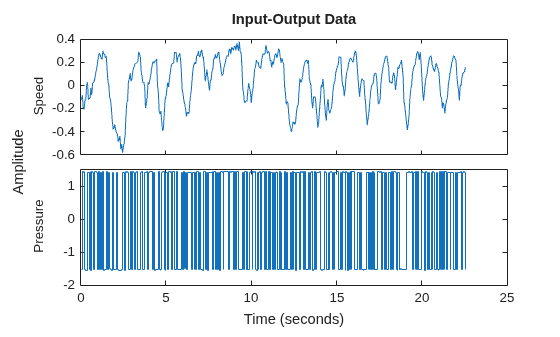

plot(steam(:,2,1))

Figure contains 2 axes. Axes 1 with title Speed contains an object of type line. This object represents untitled1. Axes 2 with title Pressure contains an object of type line. This object represents untitled1.

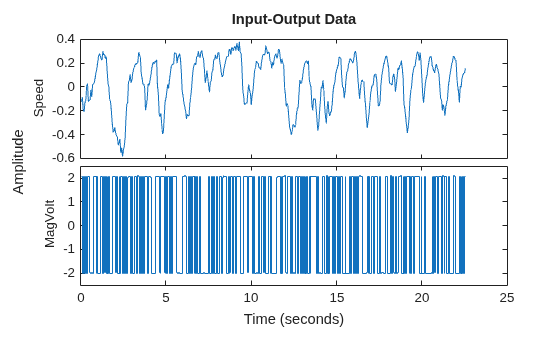

plot(steam(:,2,2))

Figure contains 2 axes. Axes 1 with title Speed contains an object of type line. This object represents untitled1. Axes 2 with title MagVolt contains an object of type line. This object represents untitled1.

Step and Impulse Responses

A first step to get a feel for the dynamics is to look at the step responses between the different channels estimated directly from data:

mi = impulseest(steam,50);

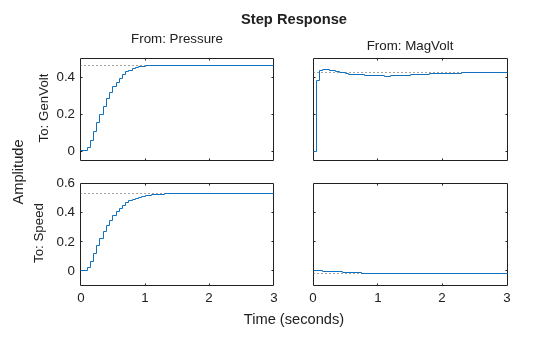

clf, step(mi)

Figure contains 4 axes. Axes 1 with title From: Pressure contains an object of type line. This object represents mi. Axes 2 contains an object of type line. This object represents mi. Axes 3 with title From: MagVolt contains an object of type line. This object represents mi. Axes 4 contains an object of type line. This object represents mi.

Responses with Confidence Regions

To look at the significance of the responses, the impulse plot can be used instead, with confidence regions corresponding to 3 standard deviations:

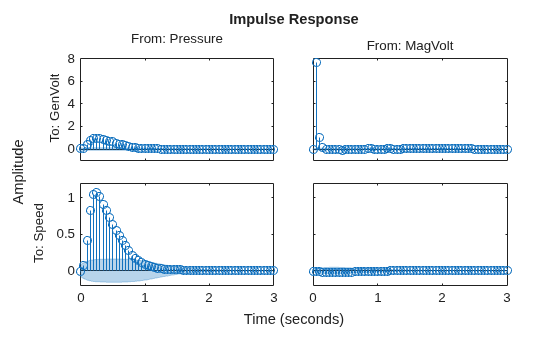

showConfidence(impulseplot(mi),3)

Figure contains 4 axes. Axes 1 with title From: Pressure contains 2 objects of type line. This object represents mi. Axes 2 contains 2 objects of type line. This object represents mi. Axes 3 with title From: MagVolt contains 2 objects of type line. This object represents mi. Axes 4 contains 2 objects of type line. This object represents mi.

Clearly the off-diagonal influences dominate (Compare the y-scales!) That is, GenVolt is primarily affected by MagVolt (not much dynamics) and Speed primarily depends on Pressure. Apparently the response from MagVolt to Speed is not very significant.

A Two-Input-Two-Output Model

A quick first test is also to look a a default continuous time state-space prediction error model. Use only the first half of the data for estimation:

mp = ssest(steam(1:250))
mp =
  Continuous-time identified state-space model:
      dx/dt = A x(t) + B u(t) + K e(t)
       y(t) = C x(t) + D u(t) + e(t)

  A =
            x1       x2       x3       x4
   x1   -29.43   -4.561   0.5994   -5.199
   x2   0.4848  -0.8662   -4.101   -2.336
   x3    2.839    5.084   -8.566   -3.855
   x4   -12.13   0.9224    1.818   -34.29

  B =
       Pressure   MagVolt
   x1    0.1033    -1.617
   x2   -0.3028  -0.09415
   x3    -1.566    0.2953
   x4  -0.04476    -2.681

  C =
                 x1       x2       x3       x4
   GenVolt   -16.39   0.3767  -0.7566    2.808
   Speed     -5.623    2.246  -0.5356    3.423

  D =
            Pressure   MagVolt
   GenVolt         0         0
   Speed           0         0

  K =
        GenVolt     Speed
   x1   -0.3555   0.08531
   x2  -0.02307     5.195
   x3     1.526     2.132
   x4     1.787   0.03216

Parameterization:
   FREE form (all coefficients in A, B, C free).
   Feedthrough: none
   Disturbance component: estimate
   Number of free coefficients: 40
   Use "idssdata", "getpvec", "getcov" for parameters and their uncertainties.

Status:
Estimated using SSEST on time domain data.
Fit to estimation data: [86.9;74.84]% (prediction focus)
FPE: 3.896e-05, MSE: 0.01414

Compare with the step responses estimated directly from data:

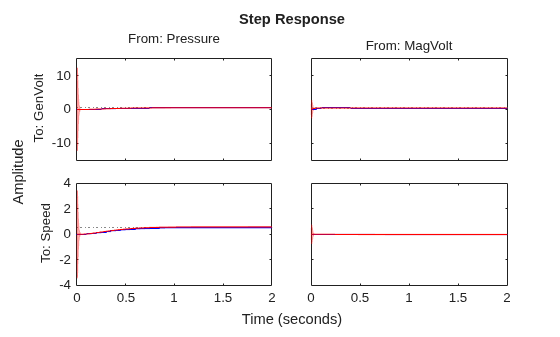

h = stepplot(mi,'b',mp,'r',2); % Blue for direct estimate, red for mp
showConfidence(h)

Figure contains 4 axes. Axes 1 with title From: Pressure contains 2 objects of type line. These objects represent mi, mp. Axes 2 contains 2 objects of type line. These objects represent mi, mp. Axes 3 with title From: MagVolt contains 2 objects of type line. These objects represent mi, mp. Axes 4 contains 2 objects of type line. These objects represent mi, mp.

The agreement is good with the variation permissible within the shown confidence bounds.

To test the quality of the state-space model, simulate it on the part of data that was not used for estimation and compare the outputs:

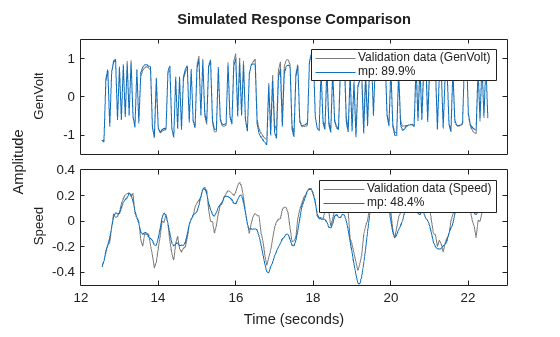

compare(steam(251:450),mp)

Figure contains 2 axes. Axes 1 contains 2 objects of type line. These objects represent Validation data (GenVolt), mp: 83.55%. Axes 2 contains 2 objects of type line. These objects represent Validation data (Speed), mp: 39.33%.

The model is very good at reproducing the Generated Voltage for the validation data, and does a reasonable job also for the speed. (Use the pull-down menu to see the fits for the different outputs.)

Spectral Analysis

Similarly, comparisons of the frequency response of mp with a spectral analysis estimate gives:

msp = spa(steam);

bode(msp,mp)

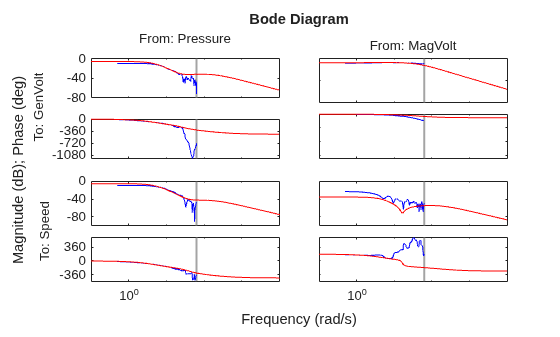

clf, bode(msp,'b',mp,'r')

Figure contains 8 axes. Axes 1 with title From: Pressure contains 2 objects of type line. These objects represent msp, mp. Axes 2 contains 2 objects of type line. These objects represent msp, mp. Axes 3 contains 2 objects of type line. These objects represent msp, mp. Axes 4 contains 2 objects of type line. These objects represent msp, mp. Axes 5 with title From: MagVolt contains 2 objects of type line. These objects represent msp, mp. Axes 6 contains 2 objects of type line. These objects represent msp, mp. Axes 7 contains 2 objects of type line. These objects represent msp, mp. Axes 8 contains 2 objects of type line. These objects represent msp, mp.

You can right-click on the plot and select the different I/O pairs for close looks. You can also choose 'Characteristics: Confidence Region' for a picture of the reliability of the bode plot.

As before the response from MagVolt to Speed is insignificant and difficult to estimate.

Single-Input-Single-Output (SISO) Models

This data set quickly gave good models. Otherwise you often have to try out sub-models for certain channels, to see significant influences The toolbox objects give full support to the necessary bookkeeping in such work. The input and output names are central for this.

The step responses indicate that MagVolt primarily influences GenVolt while Pressure primarily affects Speed. Build two simple SISO model for this: Both names and numbers can be used when selecting channels.

m1 = tfest(steam(1:250,'Speed','Pressure'),2,1); % TF model with 2 poles 1 zero
m2 = tfest(steam(1:250,1,2),1,0) % Simple TF model with 1 pole.
m2 =

  From input "MagVolt" to output "GenVolt":
    18.57
  ---------
  s + 43.53

Continuous-time identified transfer function.

Parameterization:
   Number of poles: 1   Number of zeros: 0
   Number of free coefficients: 2
   Use "tfdata", "getpvec", "getcov" for parameters and their uncertainties.

Status:
Estimated using TFEST on time domain data.
Fit to estimation data: 73.34%
FPE: 0.04645, MSE: 0.04535

Compare these models with the MIMO model mp:

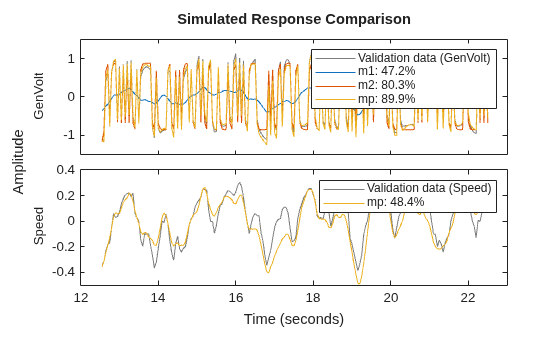

compare(steam(251:450),m1,m2,mp)

Figure contains 2 axes. Axes 1 contains 3 objects of type line. These objects represent Validation data (GenVolt), m2: 80.33%, mp: 83.55%. Axes 2 contains 3 objects of type line. These objects represent Validation data (Speed), m1: 47.2%, mp: 39.33%.

The SISO models compare well with the full model. Let us now compare the Nyquist plots. m1 is blue, m2 is green and mp is red. Note that the sorting is automatic. mp describes all input output pairs, while m1 only contains Pressure to Speed and m2 only contains MagVolt to GenVolt.

clf

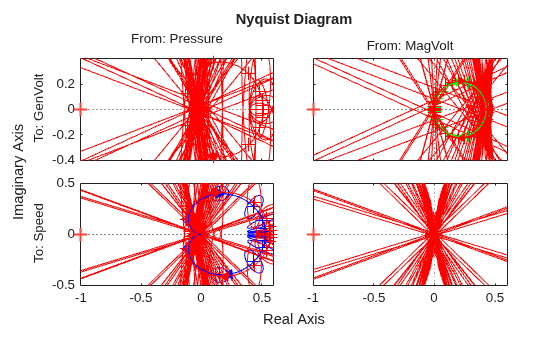

showConfidence(nyquistplot(m1,'b',m2,'g',mp,'r'),3)

Figure contains 4 axes. Axes 1 with title From: Pressure contains 6 objects of type line. This object represents mp. Axes 2 contains 12 objects of type line. These objects represent m1, mp. Axes 3 with title From: MagVolt contains 12 objects of type line. These objects represent m2, mp. Axes 4 contains 6 objects of type line. This object represents mp.

The SISO models do a good job to reproduce their respective outputs.

The rule-of-thumb is that the model fitting becomes harder when you add more outputs (more to explain!) and simpler when you add more inputs.

Two-Input-Single-Output Model

To do a good job on the output GenVolt, both inputs could be used.

m3 = armax(steam(1:250,'GenVolt',:),'na',4,'nb',[4 4],'nc',2,'nk',[1 1]);
m4 = tfest(steam(1:250,'GenVolt',:),2,1);

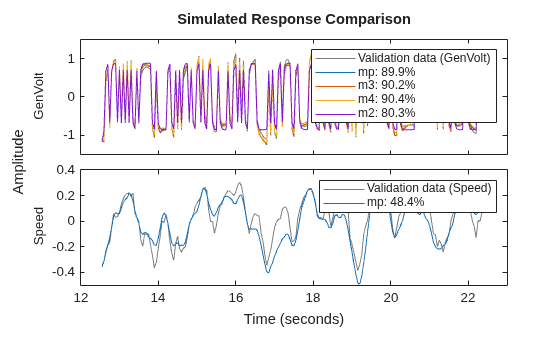

compare(steam(251:450),mp,m3,m4,m2)

Figure contains 2 axes. Axes 1 contains 5 objects of type line. These objects represent Validation data (GenVolt), mp: 83.55%, m3: 90.18%, m4: 89.38%, m2: 80.33%. Axes 2 contains 2 objects of type line. These objects represent Validation data (Speed), mp: 39.33%.

About 10% improvement was possible by including the input Pressure in the models m3 (discrete time) and m4 (continuous time), compared to m2 that uses just MagVolt as input.

Merging SISO Models

If desired, the two SISO models m1 and m2 can be put together as one "Off-Diagonal" model by first creating a zero dummy model:

mdum = idss(zeros(2,2),zeros(2,2),zeros(2,2),zeros(2,2));
mdum.InputName = steam.InputName;
mdum.OutputName = steam.OutputName;
mdum.ts = 0; % Continuous time model
m12 = [idss(m1),mdum('Speed','MagVolt')];    % Adding Inputs.
                                             % From both inputs to Speed
m22 = [mdum('GenVolt','Pressure'),idss(m2)]; % Adding Inputs.
                                             % From both inputs to GenVolt

mm = [m12;m22]; % Adding the outputs to a 2-by-2 model.

compare(steam(251:450),mp,mm)

Figure contains 2 axes. Axes 1 contains 3 objects of type line. These objects represent Validation data (GenVolt), mp: 83.55%, mm: 80.33%. Axes 2 contains 3 objects of type line. These objects represent Validation data (Speed), mp: 39.33%, mm: 47.2%.

Clearly the "Off-Diagonal" model mm performs like m1 and m2 in explaining the outputs.
