Acquire Data from an OPC Data Access Server

This example shows how to use Industrial Communication Toolbox™ to acquire data from an OPC server.


Create OPC Data Access Object Hierarchy

Create an opcda object associated with the required server and connect to the server.

da = opcda('localhost','Matrikon.OPC.Simulation.1')
da =

Summary of OPC Data Access Client Object: localhost/Matrikon.OPC.Simulation.1

   Server Parameters
      Host      : localhost
      ServerID  : Matrikon.OPC.Simulation.1
      Status    : disconnected
      Timeout   : 10 seconds

   Object Parameters
      Group     : 0-by-1 dagroup object
      Event Log : 0 of 1000 events

Create a group object to manage the required items.

grp = addgroup(da,'DemoGroup')
grp =

Summary of OPC Data Access Group Object: DemoGroup

   Object Parameters
      Group Type   : private
      Item         : 0-by-1 daitem object
      Parent       : localhost/Matrikon.OPC.Simulation.1
      Update Rate  : 0.5
      Deadband     : 0%

   Object Status
      Active       : on
      Subscription : on
      Logging      : off

   Logging Parameters
      Records      : 120
      Duration     : at least 60 seconds
      Logging to   : memory
      Status       : Waiting for START.
                     0 records available for GETDATA/PEEKDATA

Add the Real8 item from Saw-Toothed Waves and the Real8 and UInt2 items from Triangle Waves to the group.

itmIDs = {'Saw-toothed Waves.Real8', ...
    'Triangle Waves.Real8', ...
    'Triangle Waves.UInt2'};
itm = additem(grp,itmIDs)
itm =

   OPC Item Object Array:

   Index:  Active:  ItemID:             Value:                Quality:    TimeStamp:
   1       on       ...hed Waves.Real8                        Bad: Ou...
   2       on Waves.Real8                        Bad: Ou...
   3       on Waves.UInt2                        Bad: Ou...

Configure OPC Object Properties

Configure the group to log 60 seconds of data at 0.2 second intervals.

logDuration = 60;
logRate = 0.2;
numRecords = ceil(logDuration./logRate)
grp.UpdateRate = logRate;
grp.RecordsToAcquire = numRecords;
numRecords =


Acquire OPC Server Data

Start the acquisition task, and wait for the task to complete before continuing execution of any MATLAB™ code.


Note that while waiting for a logging task to complete, MATLAB continues to process callbacks from OPC objects (and other objects that include callback functionality).

Retrieve the logged data into separate arrays for the time stamps, quality, and values.

[logIDs,logVal,logQual,logTime,logEvtTime] = getdata(grp,'double');

Examine the workspace for the sizes of the data.

whos log*
  Name               Size             Bytes  Class     Attributes

  logDuration        1x1                  8  double
  logEvtTime       300x1               2400  double
  logIDs             1x3                438  cell
  logQual          300x3             126004  cell
  logRate            1x1                  8  double
  logTime          300x3               7200  double
  logVal           300x3               7200  double

Plot the Data

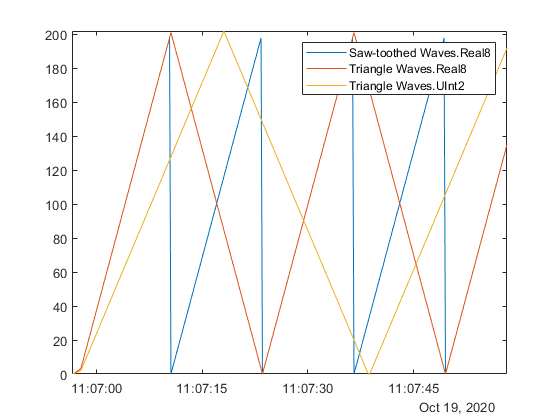

You can now plot this data all on one set of axes.

logTime = datetime(logTime,'ConvertFrom','datenum');
axis tight
lgd = legend(logIDs);
lgd.AutoUpdate = 'off';

The value data does not provide the full picture. You should always examine the quality of the data to determine the validity of the value array.

Annotate the plot with markers where the quality is not Good.

hold on
isBadQual = strncmp(logQual,'Bad',3);
isRepeatQual = strncmp(logQual,'Repeat',6);
for k = 1:size(logQual,2)
    badInd = isBadQual(:,k);
    plot(logTime(badInd,k),logVal(badInd,k),'ro', ...
    repInd = isRepeatQual(:,k);
    plot(logTime(repInd, k),logVal(repInd,k),'ro', ...
        'MarkerFaceColor',[0.8 0.5 0],'MarkerEdgeColor','k')
hold off

Bad quality is marked in red, and Repeat quality is marked in orange.

Clean Up

Disconnect and delete the client object from the OPC engine.
