# Cylinder Linearization

This example shows how you can linearize a Simscape™ hydro-mechanical system model to check stability of an open-loop system around an operating point. This example uses the Simulink Control Design™ *Frequency Response Estimator* block to perform a frequency response estimation experiment and store the data for later estimation offline.

### Model

The model contains a plant, Tandem Primary cylinder in an open-loop configuration. The *Frequency Response Estimator* block accepts the input signal *u*. It feeds a sum of input signal and a Sinestream perturbation into the *Simulink-PS converter* block. The *Simulink-PS converter* block injects the sum of the operating point input and the sinestream to the Tandem Primary Cylinder subsystem.

open_system('sscv_cylinder_linearization') set_param(find_system('sscv_cylinder_linearization','FindAll', 'on','type','annotation','Tag','ModelFeatures'),'Interpreter','off')

### Offline Frequency Response Estimation

Frequency response describes the steady state response of a system to a sinusoidal input signal. If the system is linear *G(s)*, the output signal is a sine wave of the same frequency with a different magnitude and a phase shift. A frequency response data (*frd*) model that stores frequency response information at multiple frequencies is useful for tasks such as analyzing plant dynamics, understanding open-loop and closed-loop stability, validating linearization results, designing a control system, and estimating a parametric model.

You can use the Simulink Control Design™ *frestimate* command or use the Model Linearizer app to run a simulation with some perturbation signals on the Simscape model. Afterwards, the plant frequency responses are estimated offline based on the collected experiment data. This approach is called offline estimation.

When generating data from simulating the model, it is important that the physics should not encounter non-linearities like friction, saturation, hardstop, and switching. This is required for the correct frequency response estimation for the system of interest.

### Hydro-mechanical System Stability Estimation Using Sinestream Mode

The model contains the *Frequency Response Estimator* block in the *control signal + perturbation* output configuration setting. You can use the *start/stop signal* to start and stop a frequency response estimation experiment in this configuration setting.

During the experiment, when the *Experiment Mode* is in *Sinestream* setting, the block injects sinusoidal signals into to the *Simulink-PS converter* block one frequency after another, from the lowest to the highest.

*Frequency Response Estimator* block has a *data* outport that allows you to log a time series experiment data from simulation. You can process that data set offline with the *frestimate* command to generate an *frd* object.

*Frequency Response Estimator* block also has an *frd* outport that allows you to log the frequency response data from simulation. You can process that data set offline with the *frd* command to generate an *frd* object.

sim('sscv_cylinder_linearization') sysEstimFRD1 = frestimate(dataTimeSeries,omega,'rad/s'); sysEstimFRD2 = frd(dataFreqDomain,omega);

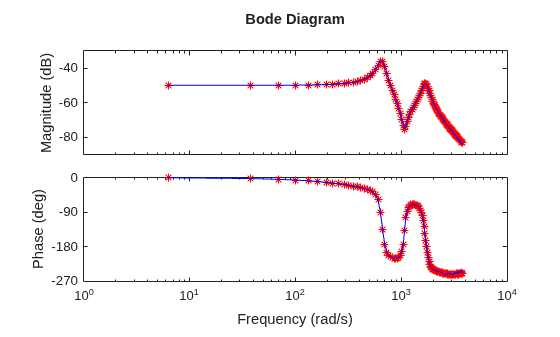

You can use generated *frd* objects to create the bode plot for the system. The generated bode plot will be same for the generated *frd* objects, sysEstimFRD1 and sysEstimFRD2.

figure; bode(sysEstimFRD1, 'r*') hold; bode(sysEstimFRD2,'b')

Current plot held

You can use the System Identification Toolbox™ *pem* or *ssest* command to identify a state-space model fitting the *frd* object. The sysEstimFRD2 *frd* object will create a continuous state-space model, however sysEstimFRD1 *frd* object will create a discrete state-space model.

```
sysEstimIdentFRD1 = ssest(sysEstimFRD1,4, 'Ts', sysEstimFRD1.Ts);
sysEstimIdentFRD2 = ssest(sysEstimFRD2,4);
```

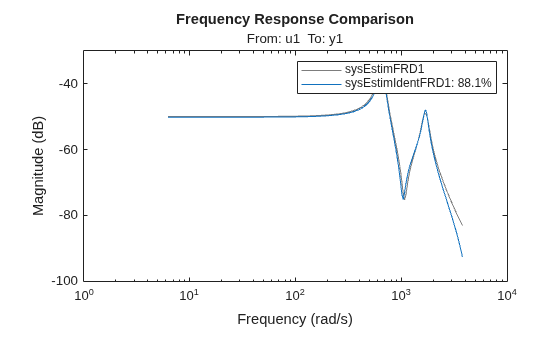

You can use the System Identification Toolbox *compare* command to check the fit quality between the estimated state-space model, sysEstimIdentFRD1 or sysEstimIdentFRD2 and the generated *frd* object, sysEstimFRD1 or sysEstimFRD2 respectively.

figure; compare(sysEstimFRD1,sysEstimIdentFRD1)

You can use the Control System Toolbox™ *pole* command to estimate the poles of the system using the identified state-space model. If the poles are on the left side of the s-plane for the continuous state-space model, sysEstimIdentFRD2, then the open-loop hydro-mechanical system of interest is a stable system around the selected operating point.

poles = pole(sysEstimIdentFRD2)

poles = 1.0e+03 * -0.0392 + 0.6569i -0.0392 - 0.6569i -0.1249 + 1.6856i -0.1249 - 1.6856i

Similarly, for the discrete state-space model, sysEstimIdentFRD1, if the poles lie within the unit circle then the open-loop hydro-mechanical system of interest is a stable system around the selected operating point.

poles = pole(sysEstimIdentFRD1) magnitude = abs(poles)

poles = 0.9736 + 0.1657i 0.9736 - 0.1657i 0.9939 + 0.0654i 0.9939 - 0.0654i magnitude = 0.9876 0.9876 0.9961 0.9961
