# Train Sequence Classification Network Using Custom Training Loop

This example shows how to train a network that classifies sequences with a custom learning rate schedule.

You can train most types of neural networks using the `trainnet` and `trainingOptions` functions. If the `trainingOptions` function does not provide the options you need (for example, a custom learning rate schedule), then you can define your own custom training loop using `dlarray` and `dlnetwork` objects for automatic differentiation. For an example showing how to train a convolutional neural network for sequence classification using the `trainnet` function, see Sequence Classification Using 1-D Convolutions.

Training a network in a custom training loop with sequence data requires some additional processing steps when compared with image or feature data. Most deep learning functions require data passed as numeric arrays with a fixed sequence length. If you have sequence data where observations have varying lengths, then you must pad or truncate the sequences in each mini-batch so that they have the same length.

This example trains a network to classify sequences with the time-based decay learning rate schedule: for each iteration, the solver uses the learning rate given by ${\rho }_{\mathit{t}}=\frac{{\rho }_{0}}{1+\mathit{k}\text{\hspace{0.17em}}\mathit{t}}$, where t is the iteration number, ${\rho }_{0}$ is the initial learning rate, and k is the decay.

Load the Waveform data set from `WaveformData.mat`. The observations are `numTimeSteps`-by-`numChannels` arrays, where `numTimeSteps` and `numChannels` are the number of time steps and channels of the sequence, respectively. The sequences have different lengths.

`load WaveformData`

View the sizes of the first few sequences.

`data(1:5)`
```ans=5×1 cell array {103×3 double} {136×3 double} {140×3 double} {124×3 double} {127×3 double} ```

View the number of channels. To train the network, each sequence must have the same number of channels.

`numChannels = size(data{1},2)`
```numChannels = 3 ```

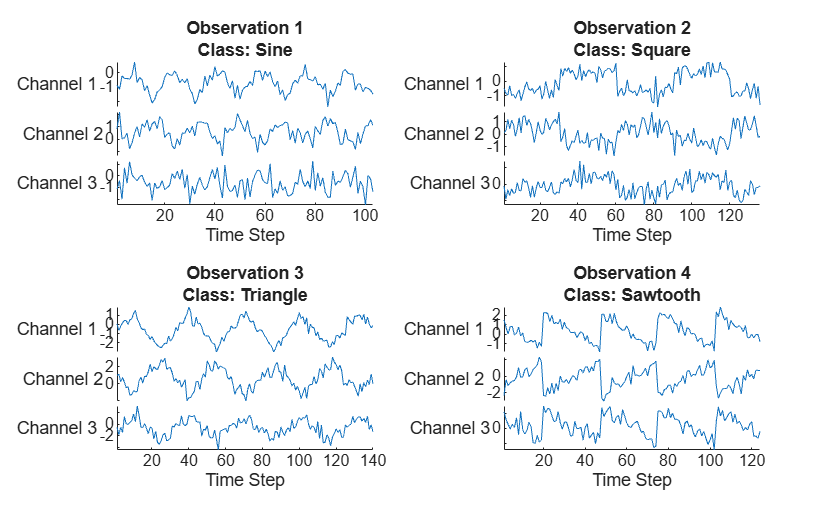

Visualize the first few sequences in a plot.

```figure tiledlayout(2,2) for i = 1:4 nexttile stackedplot(data{i},DisplayLabels="Channel " + (1:numChannels)); title("Observation " + i + newline + "Class: " + string(labels(i))) xlabel("Time Step") end```

Determine the number of classes in the training data.

```classNames = categories(labels); numClasses = numel(classNames);```

Partition the data into training and test partitions. Train the network using the 90% of the data and set aside 10% for testing.

```numObservations = numel(data); idxTrain = 1:floor(0.9*numObservations); XTrain = data(idxTrain); TTrain = labels(idxTrain); idxTest = floor(0.9*numObservations)+1:numObservations; XTest = data(idxTest); TTest = labels(idxTest);```

### Define Network

Define the network for sequence classification.

• For the sequence input, specify a sequence input layer with input size matching the number of channels of the training data.

• Specify three convolution-layernorm-ReLU blocks.

• Pad the input to the convolution layers such that the output has the same size by setting the `Padding` option to `"same"`.

• For the first convolution layer specify 20 filters of size 5.

• Pool the time steps to a single value using a 1-D global average pooling layer.

• For classification, specify a fully connected layer with size matching the number of classes

• To map the output to probabilities, include a softmax layer.

When training a network using a custom training loop, do not include an output layer.

```layers = [ sequenceInputLayer(numChannels) convolution1dLayer(5,20,Padding="same") layerNormalizationLayer reluLayer convolution1dLayer(5,20,Padding="same") layerNormalizationLayer reluLayer convolution1dLayer(5,20,Padding="same") layerNormalizationLayer reluLayer globalAveragePooling1dLayer fullyConnectedLayer(numClasses) softmaxLayer];```

Create a `dlnetwork` object from the layer array.

`net = dlnetwork(layers)`
```net = dlnetwork with properties: Layers: [13×1 nnet.cnn.layer.Layer] Connections: [12×2 table] Learnables: [14×3 table] State: [0×3 table] InputNames: {'sequenceinput'} OutputNames: {'softmax'} Initialized: 1 View summary with summary. ```

### Define Model Loss Function

Training a deep neural network is an optimization task. By considering a neural network as a function $f\left(X;\theta \right)$, where $X$ is the network input, and $\theta$ is the set of learnable parameters, you can optimize $\theta$ so that it minimizes some loss value based on the training data. For example, optimize the learnable parameters $\theta$ such that for a given inputs $X$ with a corresponding targets $T$, they minimize the error between the predictions $Y=f\left(X;\theta \right)$ and $T$.

Create the function `modelLoss`, listed in the Model Loss Function section of the example, that takes as input the `dlnetwork` object, a mini-batch of input data with corresponding targets, and returns the loss, the gradients of the loss with respect to the learnable parameters, and the network state.

### Specify Training Options

Train for 60 epochs with a mini-batch size of 128.

```numEpochs = 60; miniBatchSize = 128;```

Specify the options for Adam optimization. Specify an initial learn rate of 0.005 with a decay of 0.01.

```initialLearnRate = 0.005; learnRateDecay = 0.01;```

### Train Model

Create a `minibatchqueue` object that processes and manages mini-batches of data during training.

Mini-batch queue objects require data specified as datastores. Convert the sequences and labels to array datastores and combine them using the `combine` function. To output sequences as a cell array of numeric arrays, specify an output type of `"same"` for the sequence data.

```adsXTrain = arrayDatastore(XTrain,OutputType="same"); adsTTrain = arrayDatastore(TTrain); cdsTrain = combine(adsXTrain,adsTTrain);```

Create a `minibatchqueue` object that processes and manages mini-batches of data during training. For each mini-batch:

• Use the custom mini-batch preprocessing function `preprocessMiniBatch` (defined at the end of this example) to pad the sequences to have the same length and convert the labels to one-hot encoded variables.

• Because the data has rows and columns that correspond to time steps and channels, respectively, format the sequence data with the dimension labels `"TCB"` (time, channel, batch). By default, the `minibatchqueue` object converts the data to `dlarray` objects with underlying type `single`. Do not format the class labels.

• Train on a GPU if one is available. By default, the `minibatchqueue` object converts each output to a `gpuArray` if a GPU is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).

```mbq = minibatchqueue(cdsTrain, ... MiniBatchSize=miniBatchSize, ... MiniBatchFcn=@preprocessMiniBatch, ... MiniBatchFormat=["TCB" ""]);```

```averageGrad = []; averageSqGrad = [];```

Calculate the total number of iterations for the training progress monitor.

```numObservationsTrain = size(XTrain,1); numIterationsPerEpoch = ceil(numObservationsTrain / miniBatchSize); numIterations = numEpochs * numIterationsPerEpoch;```

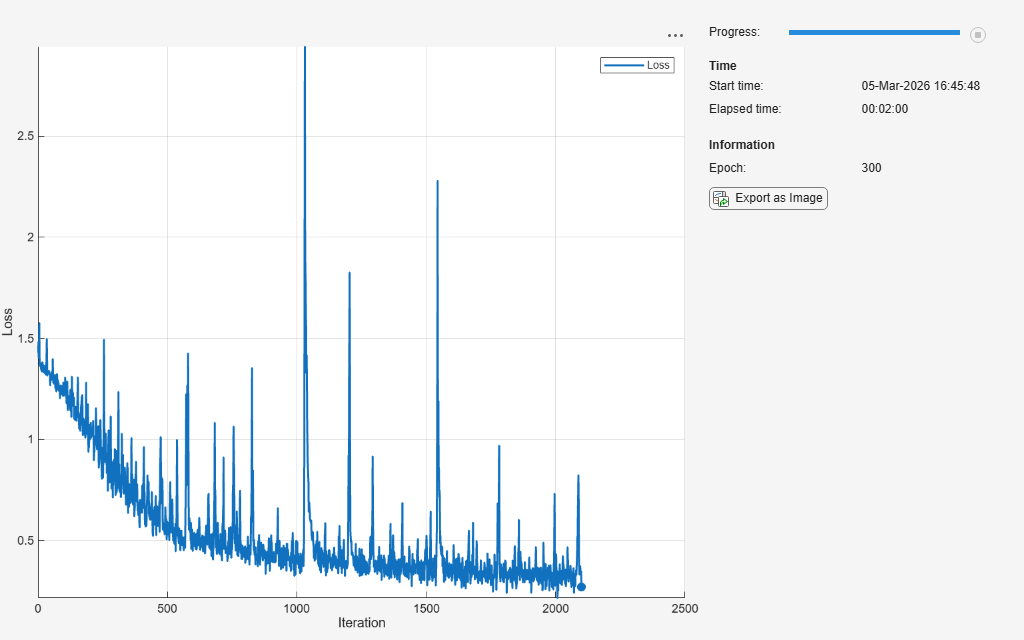

Initialize the `TrainingProgressMonitor` object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.

```monitor = trainingProgressMonitor( ... Metrics="Loss", ... Info=["Epoch" "LearnRate"], ... XLabel="Iteration");```

Train the network using a custom training loop. For each epoch, shuffle the data and loop over mini-batches of data. For each mini-batch:

• Evaluate the model loss and gradients using the `dlfeval` and `modelLoss` functions.

• Determine the learning rate for the time-based decay learning rate schedule.

• Update the network parameters using the `adamupdate` function.

• Update the loss, learn rate, and epoch values in the training progress monitor.

• Stop if the Stop property is true. The `Stop` property value of the `TrainingProgressMonitor` object changes to true when you click the Stop button.

```epoch = 0; iteration = 0; % Loop over epochs. while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1; % Shuffle data. shuffle(mbq); % Loop over mini-batches. while hasdata(mbq) && ~monitor.Stop iteration = iteration + 1; % Read mini-batch of data. [X,T] = next(mbq); % Evaluate the model gradients and loss using dlfeval and the % modelLoss function. [loss,gradients] = dlfeval(@modelLoss,net,X,T); % Determine learning rate for time-based decay learning rate schedule. learnRate = initialLearnRate/(1 + learnRateDecay*iteration); % Update the network parameters using the Adam optimizer. [net,averageGrad,averageSqGrad] = adamupdate(net,gradients, ... averageGrad,averageSqGrad,iteration,learnRate); % Update the training progress monitor. recordMetrics(monitor,iteration,Loss=loss); updateInfo(monitor,Epoch=epoch,LearnRate=learnRate); monitor.Progress = 100 * iteration/numIterations; end end```

### Test Model

Test the classification accuracy of the model by comparing the predictions on the test set with the targets.

Make predictions using the `minibatchpredict` function and convert the scores to labels using the `scores2label` function. By default, the `minibatchpredict` function uses a GPU if one is available. Otherwise, the function uses the CPU. To specify the execution environment, use the `ExecutionEnvironment` option.

```scores = minibatchpredict(net,XTest); YTest = scores2label(scores,classNames);```

Evaluate the classification accuracy.

`accuracy = mean(TTest == YTest)`
```accuracy = 0.8200 ```

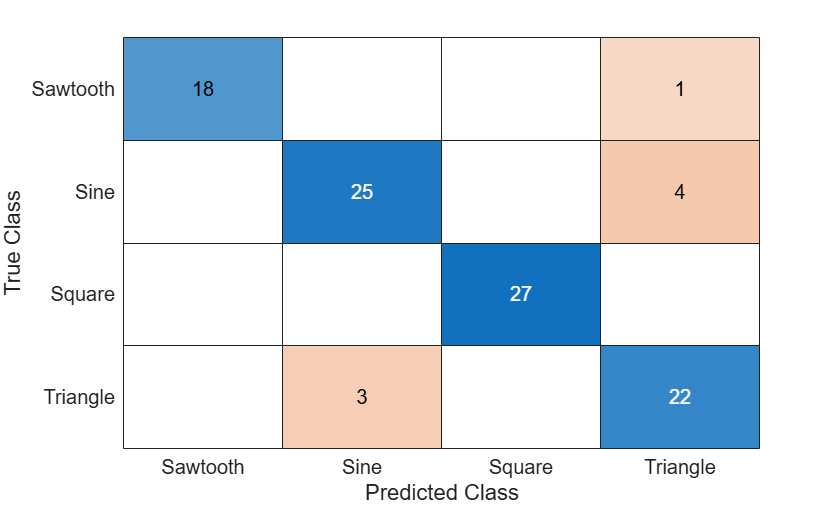

Visualize the predictions in a confusion chart.

```figure confusionchart(TTest,YTest)```

Large values on the diagonal indicate accurate predictions for the corresponding class. Large values on the off-diagonal indicate strong confusion between the corresponding classes.

### Supporting Functions

#### Model Loss Function

The `modelLoss` function takes a `dlnetwork` object `net`, a mini-batch of input data `X` with corresponding targets `T` and returns the loss and the gradients of the loss with respect to the learnable parameters in `net`. To compute the gradients automatically, use the `dlgradient` function.

```function [loss,gradients] = modelLoss(net,X,T) % Forward data through network. Y = forward(net,X); % Calculate cross-entropy loss. loss = crossentropy(Y,T); % Calculate gradients of loss with respect to learnable parameters. gradients = dlgradient(loss,net.Learnables); end```

#### Mini Batch Preprocessing Function

The `preprocessMiniBatch` function preprocesses a mini-batch of predictors and labels using the following steps:

1. Pad the sequence data in the input cell array over the first dimension (the time dimension) using the `padsequences` function. The function returns the data as a `numTimeSteps`-by-`numChannels`-by-`numObservations` array. To pass this information to downstream functions, specify that this data has a format of `"TCB"` (time, channel, batch).

2. Extract the label data from the incoming cell array and concatenate into a categorical array along the second dimension.

3. One-hot encode the categorical labels into numeric arrays. Encoding into the first dimension produces an encoded array that matches the shape of the network output.

```function [X,T] = preprocessMiniBatch(dataX,dataT) % Pad sequences. X = padsequences(dataX,1); % Extract label data from cell and concatenate. T = cat(2,dataT{1:end}); % One-hot encode labels. T = onehotencode(T,1); end```
