Code Generation for Denoising Deep Neural Network
This example shows how to generate CUDA® MEX from MATLAB® code and denoise grayscale images by using the denoising convolutional neural network (DnCNN [1]). You can use the denoising network to estimate noise in a noisy image, and then remove it to obtain a denoised image.
Third-Party Prerequisites
Required
This example generates CUDA MEX and has the following third-party requirements.
CUDA® enabled NVIDIA® GPU and compatible driver.
Optional
For non-MEX builds such as static, dynamic libraries or executables, this example has the following additional requirements.
NVIDIA toolkit.
NVIDIA cuDNN library.
Environment variables for the compilers and libraries. For more information, see Third-Party Hardware (GPU Coder) and Setting Up the Prerequisite Products (GPU Coder).
Verify GPU Environment
Use the coder.checkGpuInstall
(GPU Coder) function to verify that the compilers and libraries necessary for running this example are set up correctly.
envCfg = coder.gpuEnvConfig('host'); envCfg.DeepLibTarget = 'cudnn'; envCfg.DeepCodegen = 1; envCfg.Quiet = 1; coder.checkGpuInstall(envCfg);
Load Noisy Image

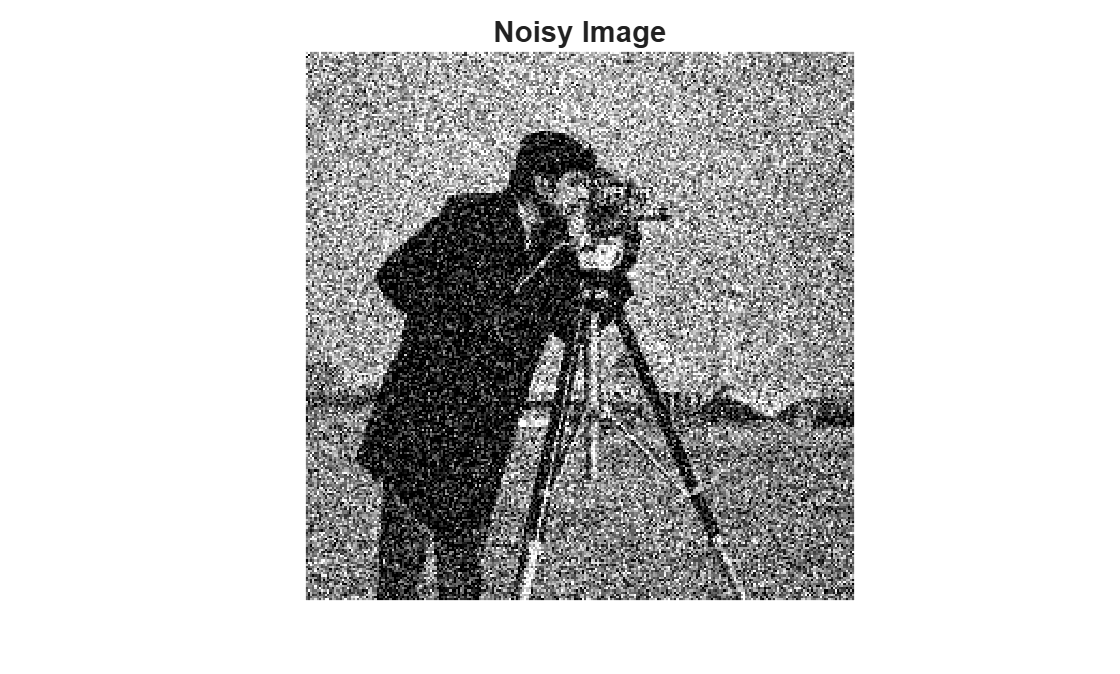

Load a noisy grayscale image into the workspace and display the image.
noisyI = imread('noisy_cameraman.png'); figure imshow(noisyI); title('Noisy Image');
Get Pretrained Denoising Network
Call the getDenoisingNetwork
helper function to get a pretrained image denoising deep neural network.
net = getDenoisingNetwork;
The getDenoisingNetwork
function returns a pretrained DnCNN [1] that you can use to detect additive white Gaussian noise (AWGN) that has unknown levels. The network is a feed-forward denoising convolutional network that implements a residual learning technique to predict a residual image. In other words, DnCNN [1] computes the difference between a noisy image and the latent clean image.
The network contains 59 layers including convolution, batch normalization, and regression output layers. To display an interactive visualization of the deep learning network architecture, use the analyzeNetwork
function.
analyzeNetwork(net);
The denoisenet_predict
Function
The denoisenet_predict
entry-point function takes a noisy image input and returns a denoised image by using a pretrained denoising network.
The function loads the network object returned by getDenoisingNetwork
into a persistent variable mynet and reuses the persistent object on subsequent prediction calls.
type denoisenet_predict
function I = denoisenet_predict(in) %#codegen % Copyright 2018-2021 The MathWorks, Inc. persistent mynet; if isempty(mynet) mynet = coder.loadDeepLearningNetwork('getDenoisingNetwork', 'DnCNN'); end % The activations methods extracts the output from the last layer. The % 'OutputAs' 'channels' name-value pair argument is used inorder to call % activations on an image whose input dimensions are greater than or equal % to the network's imageInputLayer.InputSize. res = mynet.activations(in, 59,'OutputAs','channels'); % Once the noise is estimated, we subtract the noise from the original % image to obtain a denoised image. I = in - res;
Here, the activations
method is called with the layer numeric index as 59 to extract the activations from the final layer of the network. The 'OutputAs'
'channels'
name-value pair argument computes activations on images larger than the imageInputLayer.InputSize
of the network.
The activations
method returns an estimate of the noise in the input image by using the pretrained denoising image.
Once the noise is estimated, subtract the noise from the original image to obtain a denoised image.
Run MEX Code Generation
To generate CUDA code for the denoisenet_predict.m
entry-point function, create a GPU code configuration object for a MEX target and set the target language to C++. Use the coder.DeepLearningConfig
(GPU Coder) function to create a CuDNN
deep learning configuration object and assign it to the DeepLearningConfig
property of the GPU code configuration object. Run the codegen
command specifying an input size of [256,256]. This value corresponds to the size of the noisy image that you intend to denoise.
cfg = coder.gpuConfig('mex'); cfg.TargetLang = 'C++'; cfg.DeepLearningConfig = coder.DeepLearningConfig('cudnn'); codegen -config cfg denoisenet_predict -args {ones(256,256,'single')} -report
Code generation successful: View report
Run Generated MEX
The DnCNN [1] is trained on input images having an input range [0,1]. Call the im2single
(Image Processing Toolbox) function on noisyI
to rescale the values from [0,255] to [0,1].
Call denoisenet_predict_predict
on the rescaled input image.
denoisedI = denoisenet_predict_mex(im2single(noisyI));
View Denoised Image
figure imshowpair(noisyI,denoisedI,'montage'); title('Noisy Image (left) and Denoised Image (right)');
References
[1] Zhang, K., W. Zuo, Y. Chen, D. Meng, and L. Zhang. "Beyond a Gaussian Denoiser: Residual Learning of Deep CNN for Image Denoising." IEEE Transactions on Image Processing. Vol. 26, Number 7, Feb. 2017, pp. 3142-3155.
