Run Sequence-to-Sequence Regression on FPGAs

This example uses:

Deep Learning HDL Toolbox Deep Learning HDL Toolbox
Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices
Deep Learning Toolbox Deep Learning Toolbox

This example shows how to create, compile, and deploy a long short-term memory (LSTM) network trained on remaining useful life (RUL) of engines. Use the deployed network to predict the RUL for an engine. Use MATLAB® to retrieve the prediction results from the target device.

This example uses the turbofan engine degradation data used in [1]. The example uses an LSTM network to predict the remaining useful life of an engine measured in cycles when given time series data representing various sensors in the engine. The training data contains simulated time series data for 100 engines. Each sequence varies in length and corresponds to a full run to failure (RTF) instance. The test data contains 100 partial sequences and the corresponding values for the remaining useful life at the end of each sequence.

The data set contains 100 training observations and 100 test observations.

To learn more about how to train this network, see Sequence-to-Sequence Regression Using Deep Learning. Fore this example, you must have a Xilinx® Zynq® Ultrascale+™ ZCU102 SoC development kit.

Download Data

Download and unzip the turbofan engine degradation simulation data set.

Each time series in the turbofan engine degradation simulation data set represents a different engine. Each engine starts with unknown degrees of initial wear and manufacturing variation. The engine operates normally at the start of each time series, and develops a fault at some point during the series. In the training set, the fault grows in magnitude until system failure.

The data contains ZIP-compressed text files with 26 columns of numbers, separated by spaces. Each row is a snapshot of data taken during a single operational cycle, and each column is a different variable. The columns correspond to the following:

Column 1 — Unit number
Column 2 — Time in cycles
Columns 3–5 — Operational settings
Columns 6–26 — Sensor measurements 1–21

Create a directory to store the turbofan engine degradation Simulation data set.

dataFolder = fullfile(tempdir,"turbofan");
if ~exist(dataFolder,'dir')
    mkdir(dataFolder);
end

Download and extract the turbofan engine degradation simulation data set.

filename = matlab.internal.examples.downloadSupportFile("nnet","data/TurbofanEngineDegradationSimulationData.zip");
unzip(filename,dataFolder)

Prepare Test Data

Load the test data using the processTurboFanDataTest function attached to this example. The processTurboFanDataTest function extracts the data from filenamePredictors and filenameResponses and returns the cell arrays XTest and YTest, which contain the test predictor and response sequences, respectively.

filenamePredictors = fullfile(pwd,"test_FD001.txt");
filenameResponses = fullfile(pwd,"RUL_FD001.txt");
[XTest,YTest] = processTurboFanDataTest(filenamePredictors,filenameResponses);

Remove features with constant values using idxConstant calculated from the training data. Normalize the test predictors using the same parameters as in the training data. Clip the test responses at the same threshold used for the training data.

filenamePredictors = fullfile(pwd,"train_FD001.txt");
[XTrain,YTrain] = processTurboFanDataTrain(filenamePredictors);

Remove Features with Constant Values

Features that remain constant for all time steps can negatively impact the training. Find the rows of data that have the same minimum and maximum values, and remove the rows. Then use these values to clean up the test dataset.

m = min([XTrain{:}],[],2);
M = max([XTrain{:}],[],2);
idxConstant = M == m;

for i = 1:numel(XTrain)
    XTrain{i}(idxConstant,:) = [];
end

numFeatures = size(XTrain{1},1);
mu = mean([XTrain{:}],2);
sig = std([XTrain{:}],0,2);

for i = 1:numel(XTrain)
    XTrain{i} = (XTrain{i} - mu) ./ sig;
end

thr = 150; %threshold
for i = 1:numel(XTest)
    XTest{i}(idxConstant,:) = [];
    XTest{i} = (XTest{i} - mu) ./ sig;
    YTest{i}(YTest{i} > thr) = thr;
end

Load the Pretrained Network

Load the LSTM network . This network was trained on NASA CMAPSS Data described in [1], enter:

load CMAPSSDataNetwork

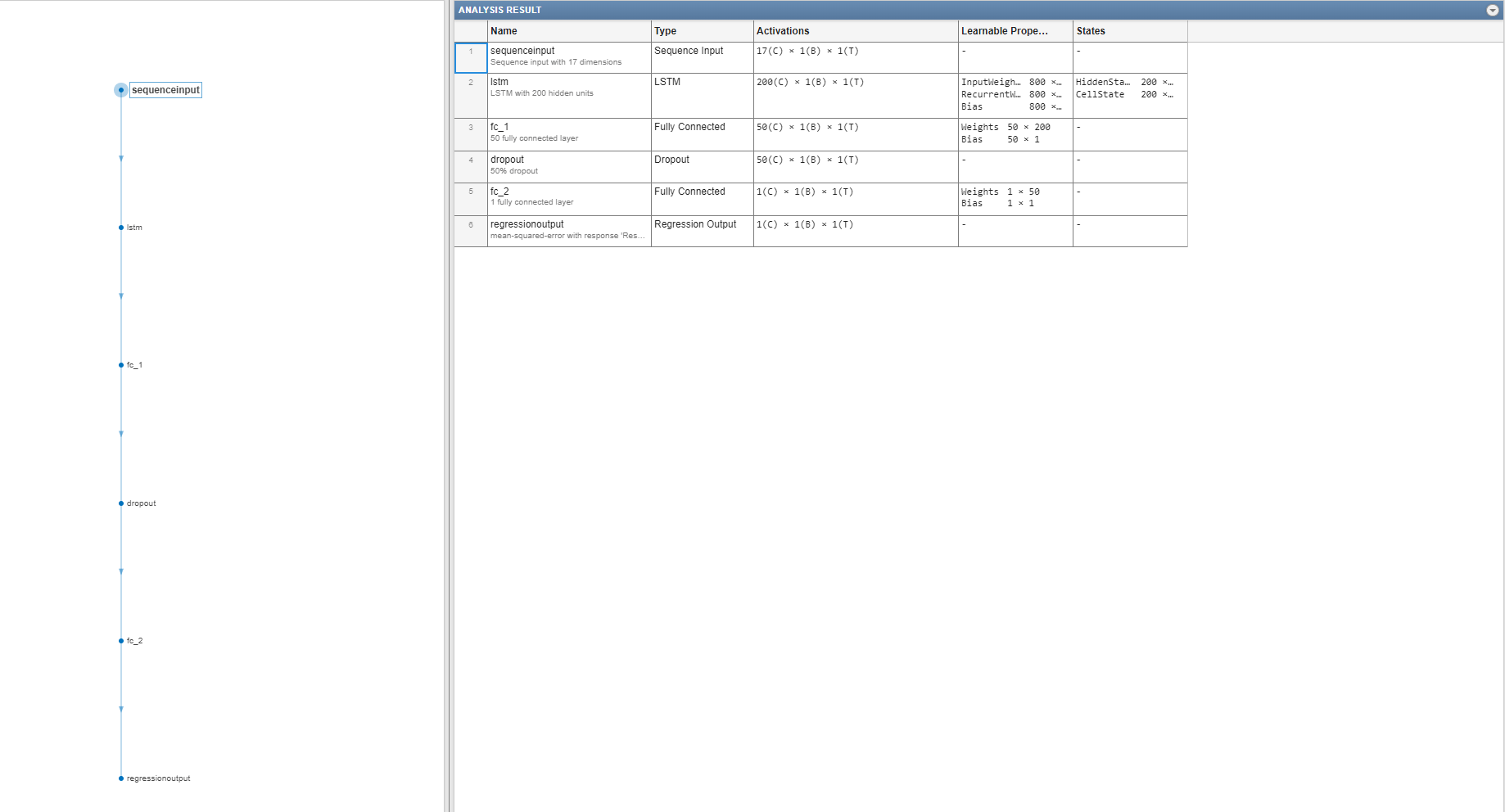

View the layers of the network by using the analyzeNetwork function. The function returns a graphical representation of the network and the parameter settings for the layers in the network.

analyzeNetwork(net)

Define FPGA Board Interface

Define the target FPGA board programming interface by using the dlhdl.Target object. Specify that the interface is for a Xilinx board with an Ethernet interface.

To create the target object, enter:

hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Alternatively, to use the JTAG interface, install Xilinx™ Vivado™ Design Suite 2020.2. To set the Xilinx Vivado toolpath, enter:

hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2020.2\bin\vivado.bat');
hTarget = dlhdl.Target('Xilinx','Interface','JTAG');

Prepare Network for Deployment

Prepare the network for deployment by creating a dlhdl.Workflow object. Specify the network and the bitstream name. Ensure that the bitstream name matches the data type of your FPGA board. In this example, the target board is the Xilinx ZCU102 SOC. The bitstream uses a single data type.

hW = dlhdl.Workflow('network', net, 'Bitstream', 'zcu102_lstm_single','Target',hTarget);

Alternatively, to run the example on the Xilinx ZC706 board, enter:

hW = dlhdl.Workflow('Network', snet, 'Bitstream', 'zc706_lstm_single','Target',hTarget);

Compile Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment. The total number of frames exceeds the default value of 30. Set the InputFrameNumberLimit name-value argument to 500 to run predictions in chunks of 500 frames to prevent timeouts.

dn = compile(hW,'InputFrameNumberLimit',500)

### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_lstm_single.
### The network includes the following layers:
     1   'sequenceinput'      Sequence Input      Sequence input with 17 dimensions            (SW Layer)
     2   'lstm'               LSTM                LSTM with 200 hidden units                   (HW Layer)
     3   'fc_1'               Fully Connected     50 fully connected layer                     (HW Layer)
     4   'fc_2'               Fully Connected     1 fully connected layer                      (HW Layer)
     5   'regressionoutput'   Regression Output   mean-squared-error with response 'Response'  (SW Layer)

### Notice: The layer 'sequenceinput' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'regressionoutput' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Compiling layer group: lstm.wi ...
### Compiling layer group: lstm.wi ... complete.
### Compiling layer group: lstm.wo ...
### Compiling layer group: lstm.wo ... complete.
### Compiling layer group: lstm.wg ...
### Compiling layer group: lstm.wg ... complete.
### Compiling layer group: lstm.wf ...
### Compiling layer group: lstm.wf ... complete.
### Compiling layer group: fc_1>>fc_2 ...
### Compiling layer group: fc_1>>fc_2 ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "4.0 MB"
    "OutputResultOffset"        "0x00400000"     "4.0 MB"
    "SchedulerDataOffset"       "0x00800000"     "4.0 MB"
    "SystemBufferOffset"        "0x00c00000"     "20.0 MB"
    "InstructionDataOffset"     "0x02000000"     "4.0 MB"
    "FCWeightDataOffset"        "0x02400000"     "4.0 MB"
    "EndOffset"                 "0x02800000"     "Total: 40.0 MB"

### Network compilation complete.

dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]
        constantData: {}

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 SoC hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. The deploy function starts programming the FPGA device and displays progress messages, and the required time to deploy the network.

 hW.deploy

### Programming FPGA Bitstream using Ethernet...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming FPGA device on Xilinx SoC hardware board at 192.168.1.101...
### Copying FPGA programming files to SD card...
### Setting FPGA bitstream and devicetree for boot...
# Copying Bitstream zcu102_lstm_single.bit to /mnt/hdlcoder_rd
# Set Bitstream to hdlcoder_rd/zcu102_lstm_single.bit
# Copying Devicetree devicetree_dlhdl.dtb to /mnt/hdlcoder_rd
# Set Devicetree to hdlcoder_rd/devicetree_dlhdl.dtb
# Set up boot for Reference Design: 'AXI-Stream DDR Memory Access : 3-AXIM'
### Rebooting Xilinx SoC at 192.168.1.101...
### Reboot may take several seconds...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming the FPGA bitstream has been completed successfully.
### Resetting network state.
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 01-Sep-2022 12:16:55

Predict Remaining Useful Life

Run the predict method of the dlhdl.Workflow object, to make predictions on the test data.

for i = 1:numel(XTest)
 YPred{i} = hW.predict(XTest{i});
end

### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 31.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 49.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 126.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 106.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 98.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 105.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 160.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 166.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 55.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 192.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 83.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 217.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 195.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 46.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 76.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 113.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 165.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 133.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 135.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 184.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 148.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 39.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 130.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 186.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 48.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 76.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 140.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 158.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 171.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 143.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 196.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 145.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 50.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 203.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 198.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 126.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 121.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 125.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 37.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 133.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 123.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 156.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 172.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 54.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 152.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 146.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 73.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 78.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 303.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 74.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 144.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 189.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 164.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 121.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 113.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 136.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 160.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 176.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 94.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 147.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 159.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 232.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 155.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 168.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 71.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 147.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 71.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 187.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 54.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 152.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 68.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 131.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 112.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 137.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 88.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 205.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 162.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 72.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 101.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 133.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 213.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 162.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 73.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 172.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 34.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 110.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 56.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 68.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 177.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 146.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 234.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 150.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 244.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 133.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 89.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 97.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 134.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 121.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 97.
### Resetting network state.
### Finished writing input activations.
### Running a sequence of length 198.

The LSTM network makes predictions on the partial sequence one time step at a time. At each time step, the network makes predictions using the value at this time step, and the network state calculated from the previous time steps. The network updates its state between each prediction. The predict function returns a sequence of these predictions. The last element of the prediction corresponds to the predicted RUL for the partial sequence.

Alternatively, you can make predictions one time step at a time by using predictAndUpdateState. This function is useful when you have the values of the time steps in a stream. Usually, it is faster to make predictions on full sequences when compared to making predictions one time step at a time. For an example showing how to forecast future time steps by updating the network between single time step predictions, see Time Series Forecasting Using Deep Learning.

Visualize some of the predictions in a plot.

idx = randperm(numel(YPred),4);
figure
for i = 1:numel(idx)
    subplot(2,2,i)

    plot(YTest{idx(i)},'--')
    hold on
    plot(YPred{idx(i)},'.-')
    hold off

    ylim([0 thr + 25])
    title("Test Observation " + idx(i))
    xlabel("Time Step")
    ylabel("RUL")
end
legend(["Test Data" "Predicted"],'Location','southeast')

For a given partial sequence, the predicted current RUL is the last element of the predicted sequences. Calculate the root-mean-square error (RMSE) of the predictions and visualize the prediction error in a histogram.

for i = 1:numel(YTest)
    YTestLast(i) = YTest{i}(end);
    YPredLast(i) = YPred{i}(end);
end
figure
rmse = sqrt(mean((YPredLast - YTestLast).^2))

rmse = single
    20.7713

histogram(YPredLast - YTestLast)
title("RMSE = " + rmse)
ylabel("Frequency")
xlabel("Error")

References

Saxena, Abhinav, Kai Goebel, Don Simon, and Neil Eklund. "Damage propagation modeling for aircraft engine run-to-failure simulation." 2008 International Conference on Prognostics and Health Management (2008): 1–9. https://doi.org/10.1109/PHM.2008.4711414.
