Register, Validate, and Deploy Custom Natural Logarithm Layer Network to FPGA

This example uses:

Deep Learning HDL Toolbox Deep Learning HDL Toolbox
Deep Learning Toolbox Deep Learning Toolbox
Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices

This example shows how to register, validate, and deploy a custom natural logarithm (log) layer network by using Deep Learning HDL Toolbox™. To deploy the network with the custom natural logarithm (log) layer:

Create a custom processor configuration by using the dlhdl.ProcessorConfig object.
Create a MATLAB® Function and Simulink® model to represent your custom layer.
Register the custom natural logarithm log) layer by using the registerCustomLayer method.
Simulate and verify your custom layer by using a generated verification model. Generate a verification model by using the openCustomLayerModel method. Verify the custom layer by using the verifyCustomLayerModel method.
Generate a custom bitstream by using the dlhdl.buildProcessor function.
Create a workflow object that has your custom layer network and custom bitstream by using the dlhdl.Workflow object.
Compile and deploy the workflow object by using the compile and deploy methods.

To retrieve the prediction results from the deployed custom layer network, use MATLAB®.

Create a Deep Learning Processor Configuration

To generate a custom processor configuration, use the dlhdl.ProcessorConfig object. The generated deep learning processor configuration object has a custom module that contains the preconfigured custom layers. Save the deep learning processor configuration to a variable hPC.

hPC = dlhdl.ProcessorConfig

hPC =
                    Processing Module "conv"
                            ModuleGeneration: 'on'
                          LRNBlockGeneration: 'off'
                 SegmentationBlockGeneration: 'on'
                            ConvThreadNumber: 16
                             InputMemorySize: [227 227 3]
                            OutputMemorySize: [227 227 3]
                            FeatureSizeLimit: 2048

                      Processing Module "fc"
                            ModuleGeneration: 'on'
                      SoftmaxBlockGeneration: 'off'
                              FCThreadNumber: 4
                             InputMemorySize: 25088
                            OutputMemorySize: 4096

                  Processing Module "custom"
                            ModuleGeneration: 'on'
                                    Addition: 'on'
                                   MishLayer: 'off'
                              Multiplication: 'on'
                                    Resize2D: 'off'
                                     Sigmoid: 'off'
                                  SwishLayer: 'off'
                                   TanhLayer: 'off'
                             InputMemorySize: 40
                            OutputMemorySize: 120

              Processor Top Level Properties
                              RunTimeControl: 'register'
                               RunTimeStatus: 'register'
                          InputStreamControl: 'register'
                         OutputStreamControl: 'register'
                                SetupControl: 'register'
                           ProcessorDataType: 'single'

                     System Level Properties
                              TargetPlatform: 'Xilinx Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit'
                             TargetFrequency: 200
                               SynthesisTool: 'Xilinx Vivado'
                             ReferenceDesign: 'AXI-Stream DDR Memory Access : 3-AXIM'
                     SynthesisToolChipFamily: 'Zynq UltraScale+'
                     SynthesisToolDeviceName: 'xczu9eg-ffvb1156-2-e'
                    SynthesisToolPackageName: ''
                     SynthesisToolSpeedValue: ''

Create Custom Layer MATLAB Function

Design the custom layer function by using a MATLAB function. The custom layer function must:

Have a maximum of two inputs and one output.
Use only element-wise operations. These operations are not element-wise operations, Matrix multiplication, flatten, reshape, concatenation, batch normalization

This example code shows the MATLAB function for a custom logarithm layer.

classdef LogLayer < nnet.layer.Layer
    % To create a custom network with exponential layer for verification
    % and for using it in yolov2transform layer, this class can be used.

    methods
        % function layer = LogLayer(varargin)
        %     p = inputParser;
        %     addParameter(p,'Name', []);
        %     parse(p,varargin{:});
        %     layer.Name = p.Results.Name;
        %     layer.Type = 'Log';
        % end

        function layer = LogLayer(name)
            layer.Name = name;
            layer.Description = 'Custom Log Layer';
        end

        function Z = predict(~, X)
            % Forward input data through the layer at prediction time and
            % output the result
            Z = log(X);
        end
    end
end

Create Custom Layer Simulink Function

Design the custom layer model in Simulink. Your model design must:

Use subsystem reference blocks only. Model reference blocks are not supported.
Model the inputvalid and outputValid signals.
Have the same inputs and outputs as the custom layer MATLAB function.

Register Custom Layer and Model

To register an instance of the custom layer and custom layer Simulink® model use the registerCustomLayer method. Deep Learning HDL Toolbox™ uses the Simulink® model to generate a verification model for the custom layer.

hLogLayer = LogLayer('customLog');
registerCustomLayer(hPC,Layer = hLogLayer, Model = 'dnnfpgaLogLayerModel.slx');
hPC

hPC =
                    Processing Module "conv"
                            ModuleGeneration: 'on'
                          LRNBlockGeneration: 'off'
                 SegmentationBlockGeneration: 'on'
                            ConvThreadNumber: 16
                             InputMemorySize: [227 227 3]
                            OutputMemorySize: [227 227 3]
                            FeatureSizeLimit: 2048

                      Processing Module "fc"
                            ModuleGeneration: 'on'
                      SoftmaxBlockGeneration: 'off'
                              FCThreadNumber: 4
                             InputMemorySize: 25088
                            OutputMemorySize: 4096

                  Processing Module "custom"
                            ModuleGeneration: 'on'
                                    Addition: 'on'
                                    LogLayer: 'on'
                                   MishLayer: 'off'
                              Multiplication: 'on'
                                    Resize2D: 'off'
                                     Sigmoid: 'off'
                                  SwishLayer: 'off'
                                   TanhLayer: 'off'
                             InputMemorySize: 40
                            OutputMemorySize: 120

              Processor Top Level Properties
                              RunTimeControl: 'register'
                               RunTimeStatus: 'register'
                          InputStreamControl: 'register'
                         OutputStreamControl: 'register'
                                SetupControl: 'register'
                           ProcessorDataType: 'single'

                     System Level Properties
                              TargetPlatform: 'Xilinx Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit'
                             TargetFrequency: 200
                               SynthesisTool: 'Xilinx Vivado'
                             ReferenceDesign: 'AXI-Stream DDR Memory Access : 3-AXIM'
                     SynthesisToolChipFamily: 'Zynq UltraScale+'
                     SynthesisToolDeviceName: 'xczu9eg-ffvb1156-2-e'
                    SynthesisToolPackageName: ''
                     SynthesisToolSpeedValue: ''

The custom deep learning processor configuration has a Log layer under the custom processing module. The custom natural logarithm (log) layer is enabled by default for the bitstream generation.

Generate Verification Model for Custom Layer

Generate a verification model for your custom layer by using the openCustomLayerModel method. Generate a test network and a test image for your custom layer network by specifying blank arguments for the Network and InputImages arguments of the openCustomLayerModel method. The size of the test image matches the input layer size of the created test network.

openCustomLayerModel(hPC);

### The 'Network' property is empty for the given object. An auto-generated network is provided.
### Custom layer verification model generation begin.
### Compiling network for Deep Learning FPGA prototyping ...
### Custom layer verification model generation complete.

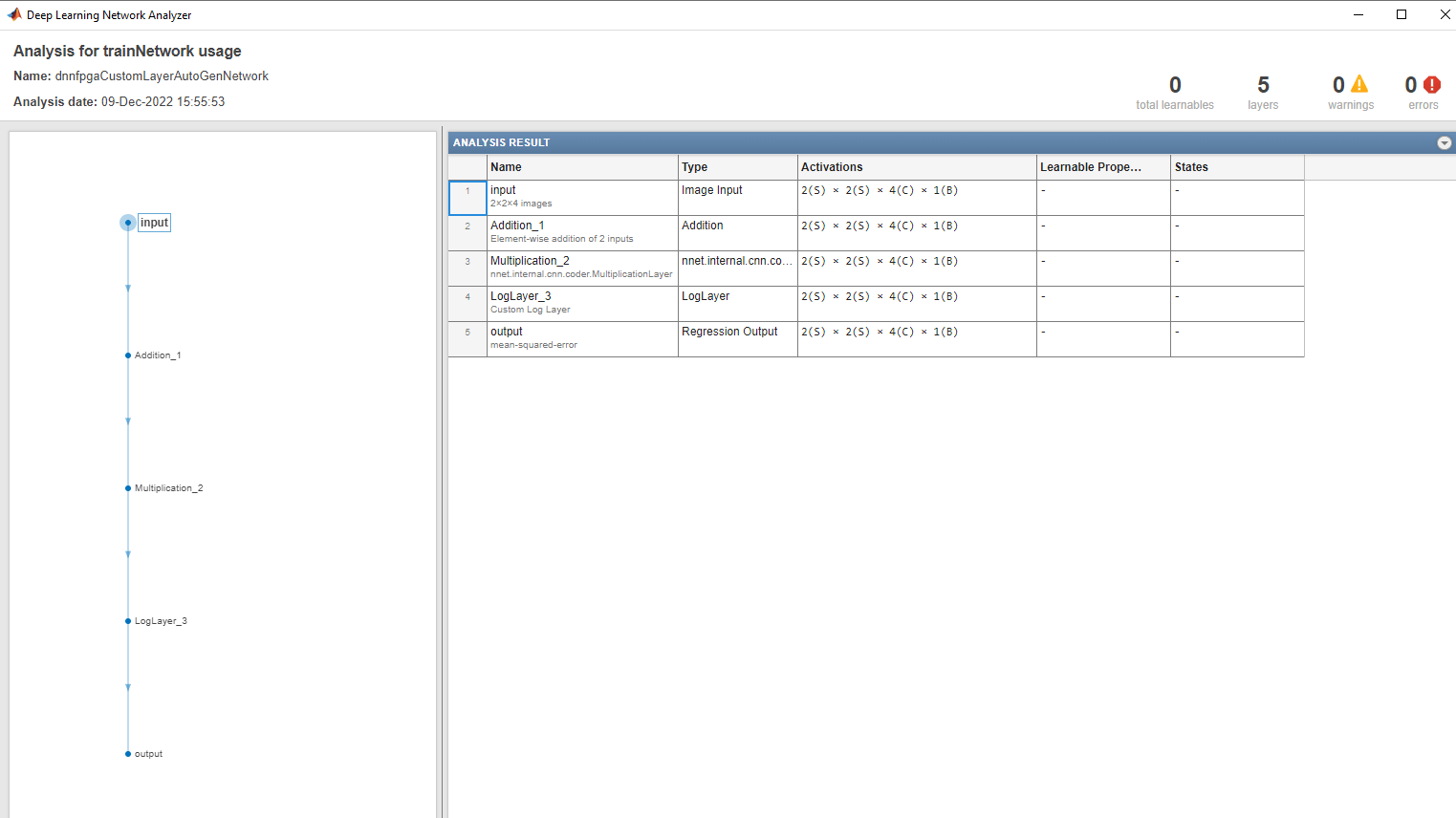

An input image of size two-by-two-by-four is created for the generated verification model. This image shows the auto-generated network for the custom layer model.

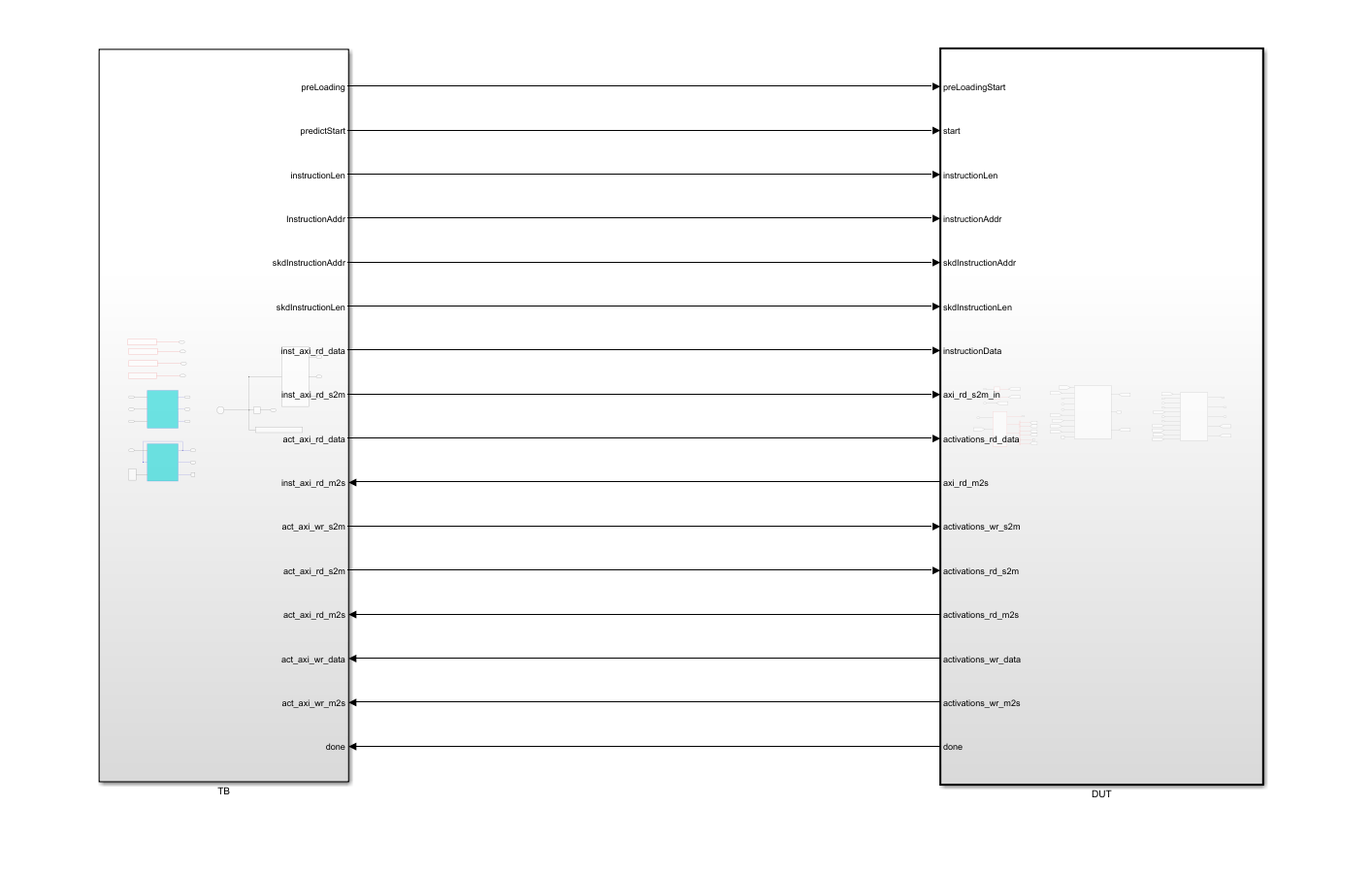

The openCustomLayerModel method generates a verification model file called dnnfpgaCustomLayerVerificationModel.slx for your custom layer. The generated verification model consists a test bench block TB and a design under test block DUT. The test bench block contains test signals that are applied to your custom layer model which is a part of the design under test block to verify the functionality of the custom layer and prediction accuracy of the network that has the custom layer. This image shows the generated verification model blocks.

Simulate and Validate Custom Layer Model

Before you verify your custom layer model by using the verifyCustomLayerModel method, open the dnnfpgaCustomLayerVerificationModel.slx verification model. The verifyCustomLayerModel verifies the functionality of the custom layer and prediction accuracy of the network which has the custom layer.

open_system('dnnfpgaCustomLayerVerificationModel.slx');
verifyCustomLayerModel(hPC);

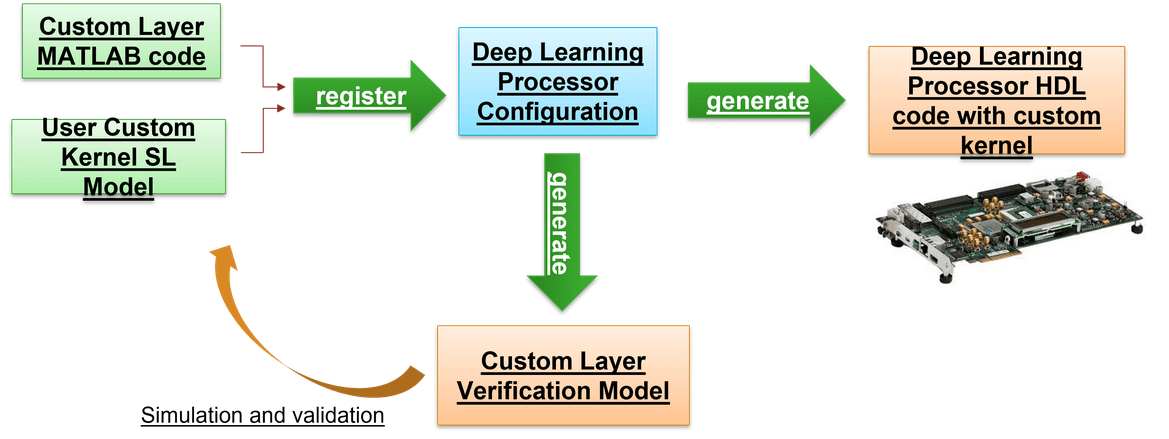

Use the generated verification model to simulate, test, iterate, and develop your custom kernel Simulink model. This image shows the custom kernel development process.

Generate Custom Bitstream

Generate a custom bitstream that has the name myCustomLayer.bit by using the dlhdl.buildProcessor function. Save the generated bitstream to the myCustomLayer_prj folder.

dlhdl.buildProcessor(hPC,ProjectFolder = 'myCustomLayer_prj',ProcessorName ='myCustomLayer');

Deploy and Predict Custom Layer Network on Hardware

Deploy the custom layer network by creating a dlhdl.Workflow object with the custom layer network as the Network argument and the custom bitstream myCustomLayer.bit as the Bitstream argument. To retrieve the prediction results from the deployed network use MATLAB and the predict method.

load('myCustomNet.mat');
hTarget = dlhdl.Target('Xilinx','Interface','JTAG');
hW = dlhdl.Workflow(Network = myCustomNet, Bitstream='myCustomLayer.bit',Target=hTarget);
compile(hW);
deploy(hW);
image = randi(255, [2,2,4]);
predict(hW,single(image),Profile='on');
