Analog Input Recorder

Acquire and visualize analog input signals

Description

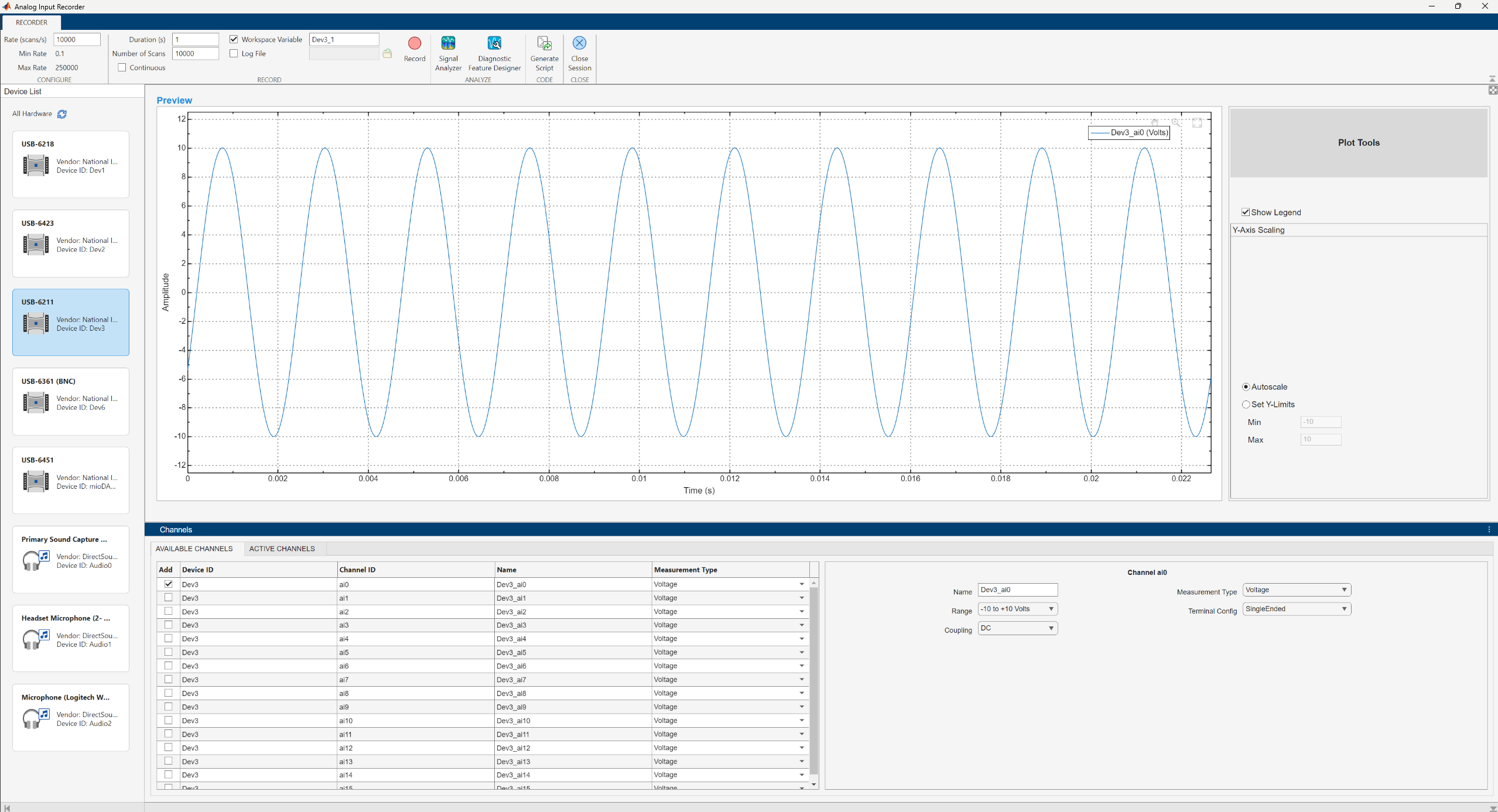

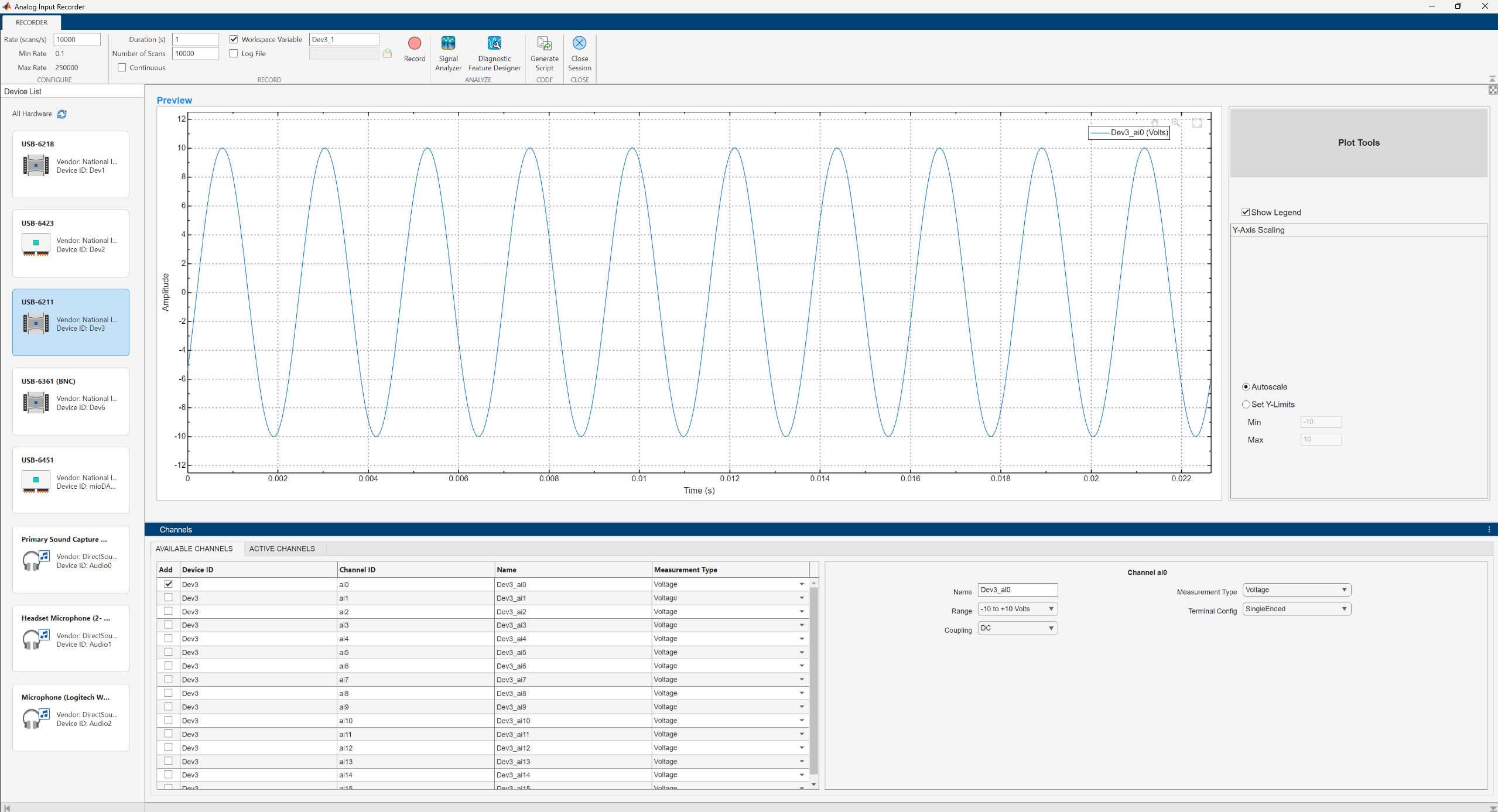

The Analog Input Recorder app provides a graphical interface to data acquisition devices.

Using this app, you can:

• Configure device channels and acquisition properties.

• Preview signals on several analog input channels for a selected device.

• Record analog input data for a finite period (foreground) or continuously (background).

• Create scripts in the Live Editor from the app.

• Open the Signal Analyzer app of Signal Processing Toolbox™ to analyze your recorded data.

• Open the Diagnostic Feature Designer app of Predictive Maintenance Toolbox™ to analyze your data and design features for machine diagnostics and prognostics.

×

Open the Analog Input Recorder App

• MATLAB^® Toolstrip: On the Apps tab, under Test and Measurement, click the app.

• MATLAB command prompt: Enter analogInputRecorder.

Note

Opening the Analog Input Recorder app deletes all your existing DataAcquisition interfaces in MATLAB.

The DataAcquisition interface created by the Analog Input Recorder app is not accessible from the MATLAB command line.

Limitations

This app supports devices from the following vendors only:

• National Instruments™ ("ni")

• Windows^® Sound Cards ("directsound")

• Analog Devices^® ("adi")

• Measurement Computing™ ("mcc")

The app device list includes only the devices that support subsystems.

Version History

Introduced in R2017b
