Aerospace Skeletons

Airliner Aircraft

Airliner is a simplified air transport aircraft type with automated landing gear retraction, which is not intended for use with a user-supplied mesh. For more information, see Airliner (Aerospace Blockset).

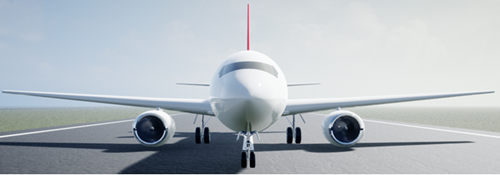

Front view of airliner aircraft.

In Unreal^® skeletons, all bones have six degrees of freedom. However, for simplicity, the Simulation 3D Aircraft (Aerospace Blockset) block only enables all six degrees of freedom (6DOF) for the BODY the Airliner. For the remaining Airliner bones, the block enables only one degree of freedom.

In this table, the markings indicate enabled or disabled degrees of freedom for corresponding aircraft bones. Columns X, Y, Z, Pitch, Roll, Pitch, and Yaw each correspond to one degree for the associated bone.

✔ — Degree of freedom enabled for the aircraft bone.
X — Degree of freedom disabled for the aircraft bone.

Airliner

Active Degrees of Freedom

Bone	Index	X	Y	Z	Roll	Pitch	Yaw
BODY	1	✔	✔	✔	✔	✔	✔
LEFT_ENGINE	2	`X`	`X`	`X`	✔	`X`	`X`
RIGHT_ENGINE	3	`X`	`X`	`X`	✔	`X`	`X`
RUDDER	4	`X`	`X`	`X`	`X`	`X`	✔
ELEVATOR	5	`X`	`X`	`X`	`X`	✔	`X`
LEFT_AILERON	6	`X`	`X`	`X`	`X`	✔	`X`
RIGHT_AILERON	7	`X`	`X`	`X`	`X`	✔	`X`
FLAPS	8	`X`	`X`	`X`	`X`	✔	`X`
NOSE_WHEEL_STRUT	9	`X`	`X`	`X`	`X`	`X`	✔
NOSE_WHEEL	10	`X`	`X`	`X`	`X`	✔	`X`
LEFT_WHEEL	11	`X`	`X`	`X`	`X`	✔	`X`
RIGHT_WHEEL	12	`X`	`X`	`X`	`X`	✔	`X`

Air Transport Aircraft

Air Transport is a customizable air transport aircraft type. For more information, see Air Transport (Aerospace Blockset).

Front view of air transport aircraft.

Lights

Light bones are located at light locations in the sample mesh, and are not attached to mesh vertices.

Light	Bone	Location in `SK_AirTransport Mesh`
Left landing	`LandingLight_L`	Left wing root
Right landing	`LandingLight_R`	Right wing root
Taxi	`NoseGear_Light`	Nose gear strut
Red navigation	`RedNavLight`	Left wingtip
Green navigation	`GreenNavLight`	Right wingtip
Left wingtip strobe	`StrobeLight_L`	Left wingtip
Right wingtip strobe	`StrobeLight_R`	Right wingtip
Tail strobe	`StrobeLight`	Top of vertical stabilizer, pointing aft
Position #1	`PositionLight1`	N/A
Position #2	`PositionLight2`	N/A
Position #2	`Beacon #1`	Top of fuselage
Position #2	`Beacon #2`	Bottom of fuselage

Skeleton

A user-supplied skeletal mesh for the air transport aircraft must have this skeleton.

AirTransport
- Engine1
- Engine2
- Engine3
- Engine4
- Aileron_L
- Aileron_R
- Flap1_L
- Flap1_R
- Flap2_L
- Flap2_R
- Spoiler_L
- Spoiler_R
- HorizStab
  - HorizStab_Elevator_L
  - HorizStab_Elevator_R
- Rudder
- NoseGear
  - NoseGear_Wheel
  - NoseGear_Light
- NoseGearDoor1
- NoseGearDoor2
- MainGear_L
  - MainGear_L_Wheel
  - MainGear_L_Link
- MainGear_L_Door1
- MainGear_L_Door2
  - MainGear_L_Door2_2
- MainGear_R
  - MainGear_R_Wheel
  - MainGear_R_Link
- MainGear_R_Door1
- MainGear_R_Door2
  - MainGear_R_Door2_2
- RedNavLight
- GreenNavLight
- StrobeLight_L
- StrobeLight_R
- LandingLight_L
- LandingLight_R
- BeaconLight1
- BeaconLight2
- StrobeLight
- PositionLight1
- PositionLight2

Fixed-Wing Aircraft

This is a highly customizable fixed wing aircraft type, suitable for vertical takeoff and landing and other less common vehicles. For more information, see Custom (Aerospace Blockset).

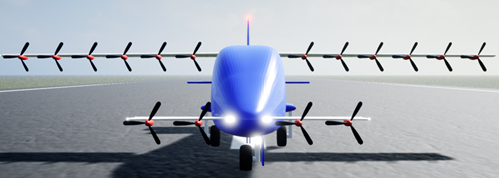

Front view of custom aircraft.

Lights

Light bones are located at light locations in the sample mesh, and are not attached to mesh vertices.

Light	Bone	Location in `SK_Aircraft` Mesh
Left landing	`LandingLight_L`	Left of nose
Right landing	`LandingLight_R`	Right of nose
Taxi	`NoseGear_Light`	Nose gear strut
Red navigation	`Wing1_RedNavLight`	Left wingtip of `WING1`
Green navigation	`Wing1_GreenNavLight`	Right wingtip of `WING1`
Left wingtip strobe	`Wing1_StrobeLight_L`	Left wingtip of `WING1`
Right wingtip strobe	`Wing1_StrobeLight_R`	Right wingtip of `WING1`
Tail strobe	`StrobeLight`	Top of vertical stabilizer, pointing aft
Position #1	`PosititionLight1`	Left wingtip of `WING2`
Position #2	`PosititionLight2`	Right wingtip of `WING2`
Beacon #1	`BeaconLight1`	Top of vertical stabilizer
Beacon #2	`BeaconLight2`	Bottom of fuselage

Skeleton

A user-supplied skeletal mesh for the Custom aircraft must have this skeleton.

FixedWing
- Engine1
  - Engine1_Prop
- Engine2
  - Engine2_Prop
- Engine3
  - Engine3_Prop
- Engine4
  - Engine4_Prop
- Engine5
  - Engine5_Prop
- Engine6
  - Engine6_Prop
- Engine7
  - Engine7_Prop
- Engine8
  - Engine8_Prop
- Engine9
  - Engine9_Prop
- Engine10
  - Engine10_Prop
- Engine11
  - Engine11_Prop
- Engine12
  - Engine12_Prop
- Engine13
  - Engine13_Prop
- Engine14
  - Engine14_Prop
- Engine15
  - Engine15_Prop
- Engine16
  - Engine16_Prop
- Wing1
  - Wing1_Aileron_L
  - Wing1_Aileron_R
  - Wing1_Flap_L
  - Wing1_Flap_R
  - Wing1_Spoiler_L
  - Wing1_Spoiler_R
  - Wing1_RedNavLight
  - Wing1_GreenNavLight
  - Wing1_StrobeLight_L
  - Wing1_StrobeLight_R
- Wing2
  - Wing2_Flap_L
  - Wing2_Flap_R
- Rudder_L
- Rudder_R
- HorizStab
  - HorizStab_Elevator_L
  - HorizStab_Elevator_R
- NoseGear
  - NoseGear_Wheel
  - NoseGear_Light
- NoseGear_Door
- MainGear_L
  - MainGear_L_Wheel
- MainGear_R
  - MainGear_R_Wheel
- MainGearDoor_L
- MainGearDoor_R
- LandingLight_L
- LandingLight_R
- BeaconLight1
- BeaconLight2
- StrobeLight
- PositionLight1
- PositionLight2

General Aviation Aircraft

General Aviation is a customizable general aviation (GA) aircraft type. For more information, see General Aviation (Aerospace Blockset).

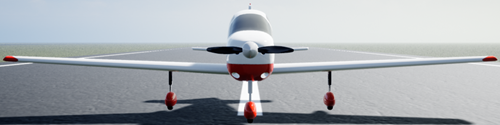

Front view of general aviation aircraft.

Lights

Light bones are located at light locations in the sample mesh, and are not attached to mesh vertices.

Light	Bone	Location in `SK_GeneralAviation` Mesh
Left landing	`LandingLight_L`	Nose cowling
Right landing	`LandingLight_R`	Nose cowling
Taxi	`NoseGear_Light`	N/A
Red navigation	`RedNavLight`	Left wingtip
Green navigation	`GreenNavLight`	Right wingtip
Left wingtip strobe	`StrobeLight_L`	Left wingtip
Right wingtip strobe	`StrobeLight_R`	Right wingtip
Tail strobe	`StrobeLight`	Top of vertical stabilizer, pointing aft
Position	`PositionLight1`	N/A
Beacon	`BeaconLight1`	Top of vertical stabilizer

Skeleton

A user-supplied skeletal mesh for the General Aviation aircraft must have this skeleton.

GA
- Engine1
- Aileron_L
- Aileron_R
- Flap_L
- Flap_R
- Spoiler_L
- Spoiler_R
- Elevator_L
- Elevator_R
- Rudder
- NoseGear
  - NoseGear_Wheel
  - NoseGear_Light
- MainGear_L
  - MainGear_L_Wheel
- MainGear_R
  - MainGear_R_Wheel
- RedNavLight
- GreenNavLight
- StrobeLight_L
- StrobeLight_R
- LandingLight_L
- LandingLight_R
- BeaconLight1
- StrobeLight
- PositionLight1

Sky Hogg

Sky Hogg is a simplified general aviation aircraft type which is not intended for use with a user-supplied mesh. For more information, see Sky Hogg (Aerospace Blockset).

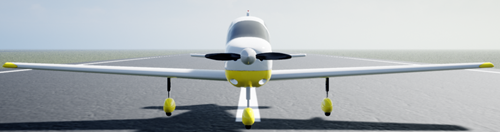

Front view of Sky Hogg aircraft.

In Unreal skeletons, all bones have six degrees of freedom. However, for simplicity, the Simulation 3D Aircraft (Aerospace Blockset) block only enables all six degrees of freedom (6DOF) for the BODY the Sky Hogg. For the remaining Sky Hogg bones, the block enables only one degree of freedom.

Active Degrees of Freedom

Bone	Index	X	Y	Z	Roll	Pitch	Yaw
BODY	1	✔	✔	✔	✔	✔	✔
PROPELLER	2	`X`	`X`	`X`	✔	`X`	`X`
RUDDER	3	`X`	`X`	`X`	`X`	`X`	✔
ELEVATOR	4	`X`	`X`	`X`	`X`	✔	`X`
LEFT_AILERON	5	`X`	`X`	`X`	`X`	✔	`X`
RIGHT_AILERON	6	`X`	`X`	`X`	`X`	✔	`X`
FLAPS	7	`X`	`X`	`X`	`X`	✔	`X`
NOSE_WHEEL_STRUT	8	`X`	`X`	`X`	`X`	`X`	✔
NOSE_WHEEL	9	`X`	`X`	`X`	`X`	✔	`X`
LEFT_WHEEL	10	`X`	`X`	`X`	`X`	✔	`X`
RIGHT_WHEEL	11	`X`	`X`	`X`	`X`	✔	`X`

Helicopter Rotorcraft

Helicopter is a customizable helicopter rotorcraft type with retractable landing gear. For more information, see Helicopter (Aerospace Blockset).

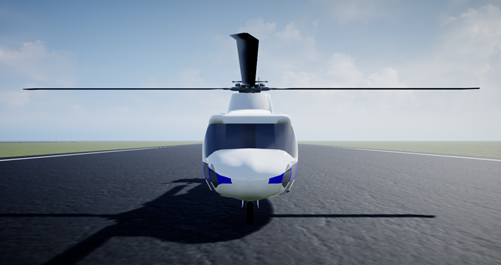

Front view of Helicopter

Lights

Light bones are located at light locations in the sample mesh, and are not attached to mesh vertices.

Light	Bone
Landing light	`LandingLight`
Nose light	`NoseLight`
Red navigation light	`RedNavLight`
Green navigation light	`GreenNavLight`
White navigation light	`PositionLight`
Strobe light	`StrobeLight`
Beacon light	`BeaconLight`

Skeleton

A user-supplied skeletal mesh for the Helicopter rotorcraft must have this skeleton.

Helicopter
- Engine1
- Engine2
- Rotor1
- Rotor2
- NoseGear
  - NoseGear_Wheel
  - NoseGear_Light
- NoseGearDoor1
- NoseGearDoor2
- MainGear_L
  - MainGear_L_Wheel
  - MainGear_L_Light
- MainGear_L_Door1
- MainGear_L_Door2
- MainGear_R
  - MainGear_R_Wheel
- MainGear_R_Door1
- MainGear_R_Door2
- Sensor1
- Sensor2
- RedNavLight
- GreenNavLight
- BeaconLight
- StrobeLight
- PositionLight

Light Helicopter Rotorcraft

Light Helicopter is a customizable light helicopter rotorcraft type with skid landing gear. For more information, see Light Helicopter (Aerospace Blockset).

Front view of light helicopter.

Lights

Light bones are located at light locations in the sample mesh, and are not attached to mesh vertices.

Light	Bone
Landing light	`LandingLight`
Nose light	`NoseLight`
Red navigation light	`RedNavLight`
Green navigation light	`GreenNavLight`
White navigation light	`PositionLight`
Strobe light	`StrobeLight`
Beacon light	`BeaconLight`

Skeleton

A user-supplied skeletal mesh for the Light Helicopter rotorcraft must have this skeleton.

LightHelicopter
- Engine
- Rotor1
- Rotor2
- Sensor1
- Sensor2
- NoseLight
- LandingLight
- RedNavLight
- GreenNavLight
- BeaconLight
- StrobeLight
- PositionLight

CubeSat Spacecraft

Front view of CubeSat.

Skeleton

CubeSat
- ANTENNA1
- ANTENNA2
- ANTENNA3
- SENSOR
- SOLAR_ARRAY1
  - SOLAR_ARRAY1_1
- SOLAR_ARRAY2
  - SOLAR_ARRAY2_2
- THRUSTER

Multirotor Rotorcraft

Multirotor is a customizable multirotor rotorcraft type intended for small vehicles. For more complex vertical takeoff and landing vehicles, use Custom Aircraft. For more information, see Multirotor (Aerospace Blockset).

Front view of light helicopter.

Lights

Light bones are located at light locations in the sample mesh, and are not attached to mesh vertices.

Light	Bone
Landing light	`LandingLight`
Nose light	`NoseLight`
Red navigation light	`RedNavLight`
Green navigation light	`GreenNavLight`
White navigation light	`PositionLight`
Strobe light	`StrobeLight`
Beacon light	`BeaconLight`

Skeleton

A user-supplied skeletal mesh for the Multirotor rotorcraft must have this skeleton.

Multirotor
- Rotor1
- Rotor2
- Rotor3
- Rotor4
- Rotor5
- Rotor6
- Rotor7
- Rotor8
- Sensor1
- Sensor2
- NoseLight
- LandingLight
- RedNavLight
- GreenNavLight
- BeaconLight
- StrobeLight
- PositionLight

CubeSat Spacecraft

CubeSat is a customizable CubeSat spacecraft type. For more information, see CubeSat (Aerospace Blockset).

Front view of CubeSat.

Skeleton

A user-supplied skeletal mesh for the CubeSat spacecraft must have this skeleton.

CubeSat
- ANTENNA1
- ANTENNA2
- ANTENNA3
- SENSOR
- SOLAR_ARRAY1
  - SOLAR_ARRAY1_1
- SOLAR_ARRAY2
  - SOLAR_ARRAY2_2
- THRUSTER

SmallSat Spacecraft

SmallSat is a customizable SmallSat spacecraft type. For more information, see SmallSat (Aerospace Blockset).

Front view of SmallSat.

Skeleton

A user-supplied skeletal mesh for the SmallSat spacecraft must have this skeleton.

SmallSat
- ANTENNA1
- ANTENNA2
- ANTENNA3
- ANTENNA4
- SENSOR1
- SENSOR2
- SENSOR3
- SENSOR4
- SOLAR_ARRAY1
  - SOLAR_ARRAY1_1
    SOLAR_ARRAY1_1_1
    SOLAR_ARRAY1_1_1_1
    SOLAR_ARRAY1_1_1_1_1
- SOLAR_ARRAY2
  - SOLAR_ARRAY2_2
    SOLAR_ARRAY2_2_2
    SOLAR_ARRAY2_2_2_2
    SOLAR_ARRAY2_2_2_2_2
- THRUSTER
